Brand: EOSLIFT
Categories: Manual Pallet Stacker
Call for price
Out of stock
The EOSLIFT H10J is a compact pallet stacker designed for loading/unloading pallets and first-level stacking in tight work areas. This manual pallet stacker uses a proven manual hydraulic pallet stacker lifting system, making it a reliable hydraulic hand pallet stacker for daily warehouse work. If you need an industrial pallet stacker with simple maintenance and stable handling, this EOSLIFT pallet stacker is a practical choice.
Tags: 1 ton manual stacker, 1000kg manual stacker, 1600mm lift stacker, 2200lb pallet stacker, 42.1in fork length stacker, 63in lift stacker, adjustable fork width stacker, buy pallet stacker, compact manual stacker, Eoslift Brand, EOSLIFT H10J, Eoslift Limited, eoslift pallet stacker, foot pedal lift stacker, H10J hand manual stacker, hydraulic hand pallet stacker, industrial pallet stacker, manual hydraulic pallet stacker, Manual Pallet Stacker, Manual Stacker, manual stacker UAE, mechanical brake stacker, narrow aisle pallet stacker, Pallet Stacker, pallet stacker price, pallet stacker UAE, portable pallet stacker, warehouse pallet stacker
Brand: EOSLIFT
Categories: Manual Pallet Stacker
Call for price
Out of stock
The EOSLIFT H10J is a compact pallet stacker designed for loading/unloading pallets and first-level stacking in tight work areas. This manual pallet stacker uses a proven manual hydraulic pallet stacker lifting system, making it a reliable hydraulic hand pallet stacker for daily warehouse work. If you need an industrial pallet stacker with simple maintenance and stable handling, this EOSLIFT pallet stacker is a practical choice.
Tags: 1 ton manual stacker, 1000kg manual stacker, 1600mm lift stacker, 2200lb pallet stacker, 42.1in fork length stacker, 63in lift stacker, adjustable fork width stacker, buy pallet stacker, compact manual stacker, Eoslift Brand, EOSLIFT H10J, Eoslift Limited, eoslift pallet stacker, foot pedal lift stacker, H10J hand manual stacker, hydraulic hand pallet stacker, industrial pallet stacker, manual hydraulic pallet stacker, Manual Pallet Stacker, Manual Stacker, manual stacker UAE, mechanical brake stacker, narrow aisle pallet stacker, Pallet Stacker, pallet stacker price, pallet stacker UAE, portable pallet stacker, warehouse pallet stacker
The EOSLIFT H10J is a durable pallet stacker built for compact warehouses, narrow aisles, and small operating zones where space matters. As a manual pallet stacker, it is suitable for pallet lifting and controlled lowering, using a dependable manual hydraulic pallet stacker mechanism. It’s a strong fit when you want a narrow aisle pallet stacker without electric components.
Reinforced safety grid (integrated mounting for protection and stability)
Press-resistant caster bracket to help protect the operator
Ergonomic handle for easier lifting/lowering control
Foot pedal option for more convenient lifting
Wheel assemblies with brakes for easier operation
Stable frame design for consistent lifting and lowering in daily use
Suitable as a compact, portable pallet stacker workflow option (manual, easy to operate and maintain)
Built for routine handling as a dependable hydraulic hand pallet stacker in industrial pallet stacker use cases
General
Model: H10J
Rated capacity: 2200 lb (≈ 1000 kg)
Load center: 23.6 in (≈ 600 mm)
Service weight: 759 lb (≈ 344 kg)
Size / Dimensions
Minimum fork height: 1.4 in
Maximum fork height: 63 in (≈ 1600 mm)
Lowered mast height: 81.1 in
Fork length: 42.1 in (≈ 1069 mm)
Overall fork width: 8.3 – 32.7 in
Length of stacker: 66.3 in
Width of stacker: 41.3 – 57.1 in
Load-bearing wheel: φ2.8 × 2.8 in
Steering wheel: φ7.1 × 2 in
Minimum turning radius: 51 in
Loading and unloading pallets in warehouses and workshops
First-level stacking and pallet positioning in compact storage areas
Narrow aisle operations where a compact chassis is preferred
Daily internal transfers where a simple manual pallet stacker reduces running costs
Practical option for customers planning to buy pallet stacker equipment for basic lifting and stacking tasks
Looking for an EOSLIFT pallet stacker in the UAE? Petra Mechatronics supplies the EOSLIFT H10J manual pallet stacker (2200lb / 1000kg, 63in lift) for warehouse and industrial handling. If you need a reliable manual hydraulic pallet stacker for daily pallet lifting and stacking, we can recommend the right setup and share the latest pallet stacker price based on your required configuration and quantity.
Where to buy: Available through Petra Mechatronics as supplier, dealer, and distributor in the UAE
Availability: Subject to stock and the requested configuration
Delivery: Delivery can be arranged across the UAE depending on order size and site access
Get a quote: Contact us to buy pallet stacker units with confirmed lead time and pricing
| General Information | ||
|---|---|---|
| Model | H10J | |
| Rated Capacity | lb. | 2200 |
| Load Center | in. | 23.6 |
| Service Weight | lb. | 759 |
H10J Hand Manual Stacker is Used for loading goods onto or unloading goods from pallets and stacking goods, Compact truck body, especially suitable for narrow aisles and small spaces Straddle and forged forks available.
Features:
This quality stacker has several features that makes it stand out as a dependable product. Using modern robotic welding technology, this truck provides a superior finish and durability. The legs are ruggedly built with C-channel formed steel. A solid, chrome-plated ram and piston minimize corrosion while the fully enclosed pump seals out contaminants and prevents oil leaks. The overloaded valve is designed to prevent misuse and increase longevity, and the whole unit provides easy access to lubrication points for easy maintenance. The German-engineered high quality poly seals ensure excellent performance.The stacker uses a manual jack mechanism to raise its load, and is able to lift to a height of 63″. The lift hydraulics are activated by using either the foot pedal or the hand lever.
The 7″ poly steel wheels are designed to provide exceptional maneuverability, while the front rollers and adjustable tapered fork design offer easy and fast pallet entry and exit. This pallet truck uses the standard EOSLIFT handle with an ergonomic loop design to reduce fatigue and operators, and the hydraulic handle offers control positions for lower and neutral.

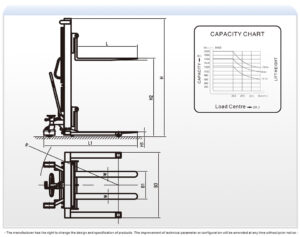

| Size | ||
|---|---|---|
| Minimum Fork Height | in. | 1.4 |
| Maximum Fork Height | in.H2 | 63 |
| Lowered Mast Height | in.H | 81.1 |
| Fork Length | in.L | 42.1 |
| Overall Fork Width | in.B1 | 8.3-32.7 |
| Length Of The Stacker | in.L1 | 66.3 |
| Width Of The Stacker | in.B3 | 41.3-57.1 |
| Load-bearing Wheel | in. | Φ2.8×2.8 |
| Steering Wheel | in. | Φ7.1×2 |
| Minimum Turning Radius | in.R | 51 |
