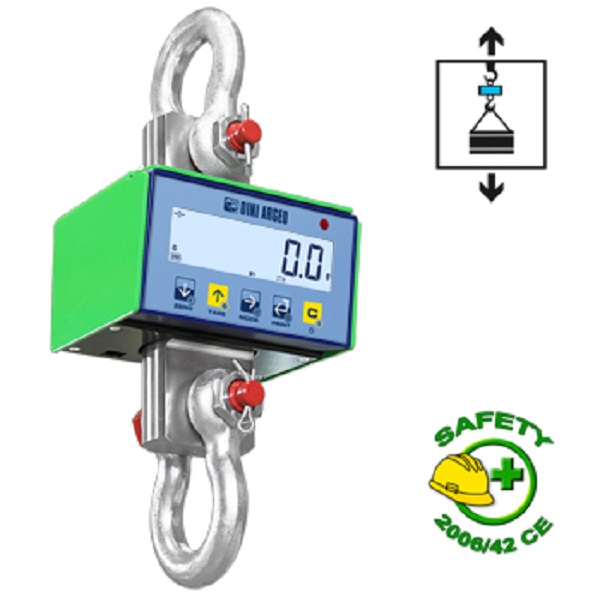

DINI ARGEO MCWN “NINJA” Series
Easy to use and reliable professional digital crane scales, for weighing in industrial environments, fitted with protective transport case.
- Single security system, for the lifting and the weighing of the load.
- Compact size and minimum distance between upper and lower shackle.
- 25 mm LCD backlit display, easily visible in any lighting condition.
- 5-key waterproof keypad
- Programmable digital filter and auto switch-off.
Product Variations
No. | Thumbnail | Model | Capacity / Division | Stock | Quantity | Price | |
---|---|---|---|---|---|---|---|
No. | Thumbnail | Model | Capacity / Division | Stock | Quantity | Price |
Description
- In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
- Fitted with the following upper and lower shackle:
- GR3 for MCWNT1
- GR6 for MCWNT3
- GR6 for MCWNT6
- GR9 for MCWNT9.
- Compact size and minimum distance between upper and lower shackle.
- 25 mm LCD backlit display, easily visible in any lighting condition.
- Precision: +/- 0.03% on MAX.
- 5-key waterproof keypad: Zero, semiautomatic or preset Tare, Mode, Print, On/Off.
- Sturdy case in oven-fire painted steel.
- Fitted with infrared remote control for up to 8m distance use. The remote control can be configured by the customer as a single automatic tare or as a remote keypad.

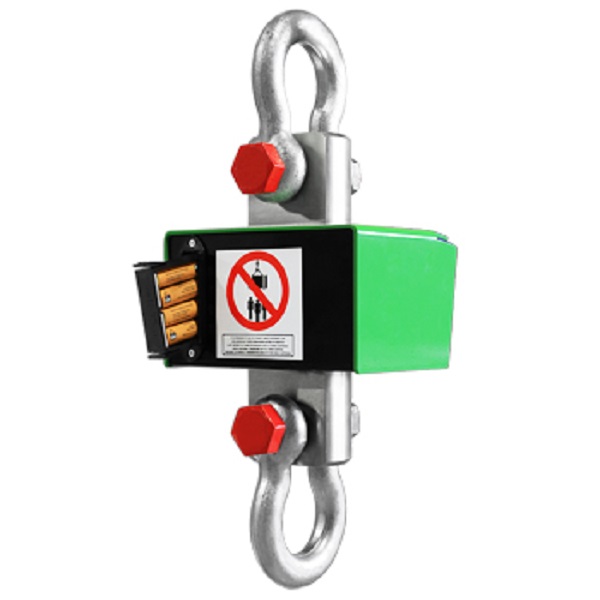

- Power supply through 4 AA batteries, which may be rechargeable (operating time of about 40 hours).
- Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools.
- Programmable digital filter and auto switch-off.
- Operating temperature: -10 /+40 ºC.
- RS232 serial port on RJ11 connector for quick programming with Dinitools.

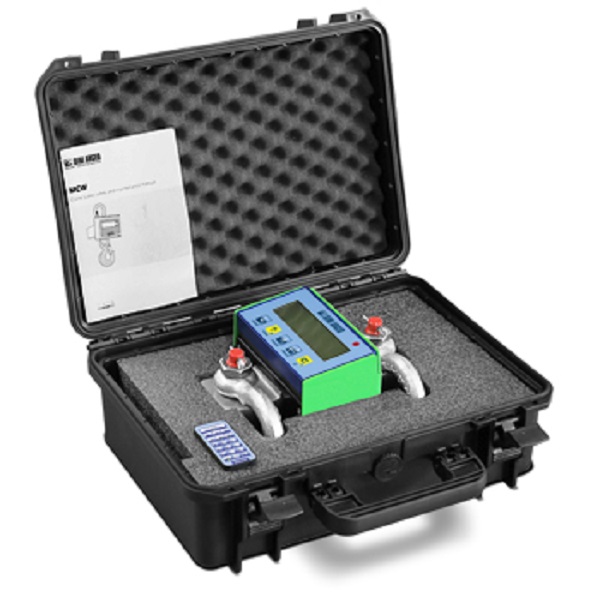

- Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm.
Brand
Dini Argeo
Additional information
Weight | N/A |
---|---|
Scale Capacity Range (Crane) | 500-1,500 kg, 3 Ton, 5 Ton, 9-10 ton |
Model | MCWNT1-3, MCWNT3-3, MCWNT6-3, MCWNT9-3 |
Capacity / Division | 1500 kg / 0.5 kg, 3 ton / 1 kg, 6 ton / 2 kg, 9.5 ton / 5 kg |
