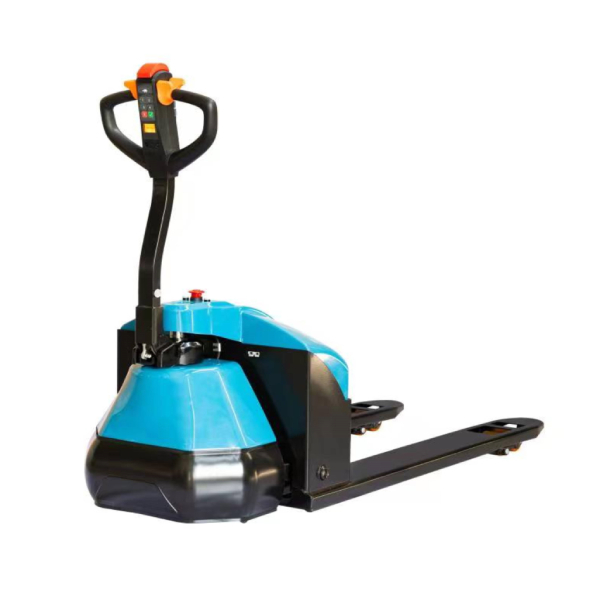

W20 Electric Pallet Truck – Lithium Powered (2 Ton)

The W20 is a professional-grade electric pallet truck engineered for efficient material handling in warehouses, retail, and logistics environments. With a 2-ton (2000 kg) load capacity and fork dimensions of 27″ x 48″, it combines full electric travel and lifting with AC drive technology for smooth, powerful operation. Equipped with a 24V 80Ah lithium-ion battery, it delivers extended runtime and fast charging, making it ideal for daily intensive use.

Designed with a compact frame and ergonomic walk-behind operation, the W20 includes an electromagnetic regenerative braking system, polyurethane wheels, and a tight turning radius for superior maneuverability in confined spaces. Backed by a 3-year limited warranty, it offers high performance, reliability, and low maintenance.

Technical Specifications:

General

• Model: W20

• Power Type: Electric (Full Electric Travel & Lift)

• Operation Mode: Walking

• Load Capacity: 2000 kg

• Service Weight: 290 kg

Wheels

• Tires: PU (Polyurethane)

• Drive Wheel Size: 230×75 mm

• Load Wheel Size: 85×85 mm

• Auxiliary Wheel Size: 100×40 mm

• Wheel Configuration: 1 Drive + 2 Auxiliary / 4 Load Wheels

Dimensions

• Max. Lift Height: 203 mm

• Min. Fork Height: 75 mm

• Fork Length: 1220 mm

• Fork Width: 680 mm

• Overall Length: 1620 mm

• Overall Width: 680 mm

• Turning Radius: 1480 mm

• Ground Clearance: 35 mm

Performance

• Travel Speed (Loaded/Unloaded): 4.5 / 5 km/h

• Lift Speed (Loaded): 40 mm/s

• Gradeability (Loaded/Unloaded): 8% / 16%

Drive & Battery

• Drive Motor: 1.2 kW (AC)

• Lifting Motor: 0.8 kW (DC)

• Battery: 24V / 80Ah (Lithium-ion)
