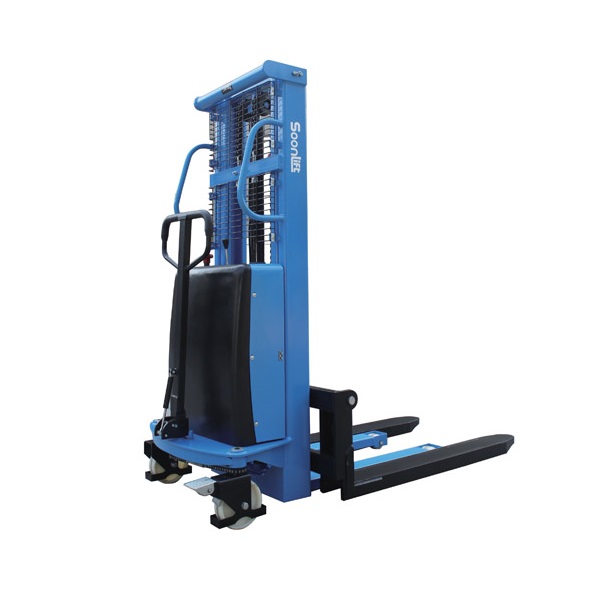

Categories: Semi Electric Pallet Stacker
Call for price
Call for price
| Model | Weighing Scale Capacity | Price |
|---|---|---|
| S2016 | 2 Ton | Call for price |
| S1535 | 1.5 Ton | Call for price |
| S1530 | 1.5 Ton | Call for price |
| S1525 | 1.5 Ton | Call for price |
| S1516 | 1.5 Ton | Call for price |
| S1035 | 1000kg | Call for price |
| S1030 | 1000kg | Call for price |
| S1025 | 1000kg | Call for price |
| S1016 | 1000kg | Call for price |
| General Information | |||||||||||
| Model | S1016 | S1025 | S1030 | S1035 | S1516 | S1525 | S1530 | S1535 | S2016 | ||
| Capacity | (kg) | 1000 | 1500 | 2000 | |||||||
| Lowered fork height | (mm) | 85 | |||||||||
| Max. lifting height | (mm) | 1600 | 2500 | 3000 | 3500 | 1600 | 2500 | 3000 | 3500 | 1600 | |
| Lowered mast height | (mm) | 2030 | 1870 | 2030 | 2280 | 2030 | 1870 | 2030 | 2280 | 2030 | |
| Fork length | (mm) | 900/1150 | |||||||||
| Fork width | (mm) | 550/330-830 | |||||||||
| Turning radius | (mm) | 1350 | |||||||||
| Overall length | (mm) | 1800 | |||||||||
| Overall width | (mm) | 745/864 | |||||||||
| Steering wheel | (mm) | φ180×50 | |||||||||
| Loaded wheel | (mm) | φ74×70 | |||||||||
| Battery | (V/Ah) | 12/120 (12/150) | |||||||||
