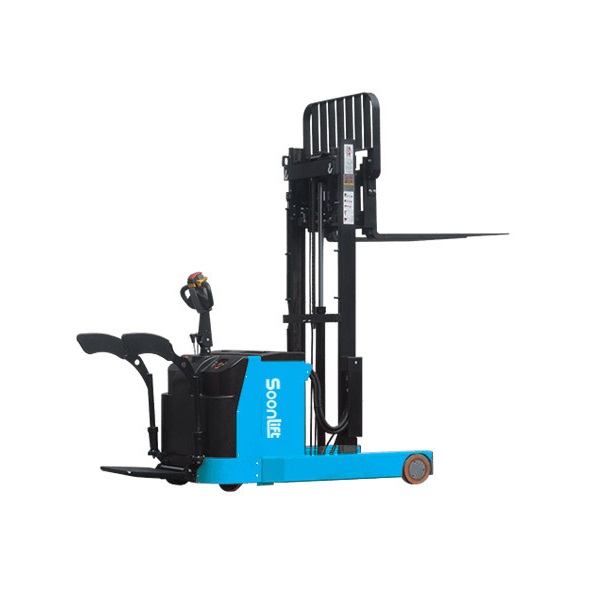

Reach Electric Stacker
Call for price
Reach Electric Stacker
| Model | Weighing Scale Capacity | Price |
|---|---|---|
| RS1545 | 1.5 Ton | Call for price |
| RS1537 | 1.5 Ton | Call for price |
| RS1530 | 1.5 Ton | Call for price |
| RS1516 | 1.5 Ton | Call for price |
·Electric Power Steering system (EPS) is optional. It makes the steering easier, the operation more flexible and precise, and reduces the operator’s labor intensity.
·The high-strength acrylic shield on the mast is with good transparency, strong shock resistance, and excellent protective effect.
·Using good materials, the truck makes the maximum balance among the several conflicting indicators of size, weight, flexibility and stability.
·Setting aside considerable space in the battery box, allows some users to increase the battery capacity, maximum to 400 AH, according to their heavy loads and long time operation.
·The hydraulic power unit, power of 3.0 KW, ensures stable and reliable lifting and lowering when loaded. The speed can be adjusted by the operators.
| General Information | ||||||
| Model | RS1516 | RS1530 | RS1537 | RS1545 | ||
| Capacity | (kg) | 1500 | 1500 | 1500 | 1500 | |
| Load center | (mm) | 500 | 500 | 500 | 500 | |
| Service weight with battery | (kg) | 1745 | 1840 | 2070 | 2110 | |
| Tyre | PU | |||||
| Tyre size, front | (mm) | φ210×70 | ||||
| Tyre size, rear | (mm) | φ230×75×82 | ||||
| Tyre size, balance | (mm) | φ149×60 | ||||
| Lowered mast height | (mm) | 2155 | 2121 | 1830 | 2080 | |
| Mast type | Single/Double/Triplex | |||||
| Max. lift height | (mm) | 1600 | 3000 | 3700 | 4500 | |
| Extended mast height | (mm) | 2535 | 4040 | 4700 | 5500 | |
| Height of tiller in drive position min./max. | (mm) | 984/1365 | ||||
| Lowered height (fork) | (mm) | 50 | ||||
| Overall length (950mm fork) | (mm) | 2225/2620/2765 | ||||
| Overall width | (mm) | 1100 | ||||
| Width over forks | (mm) | 200-740 | ||||
| Reach distance | (mm) | 500 | ||||
| Aisle width for pallets 1000×1200 crossways | (mm) | 2750 | 2790 | 2750 | 2750 | |
| Aisle width for pallets 800×1200 crossways | (mm) | 2800 | 2840 | 2800 | 2800 | |
| Turning radius | (mm) | 1670 | ||||
| Travel speed, laden/unladen | (Km/H) | 5/6 | 4.8/6 | |||
| Lift speed, laden/unladen | (mm/s) | 75/139 | 85/119 | |||
| Lower speed, laden/unladen | (mm/s) | 94/108 | 85/80 | |||
| Gradeability,  laden/unladen | (%) | 5/8 | ||||
| Drive motor | (KW) | Vertical type 1.5kw, AC | ||||
| Lift motor | (KW) | 3 | ||||
| Battery | (V/Ah) | 24/270 | 24/400 | |||
| Controller | (V/A) | 24/200 | ||||
| Sound levek at drivers ear acc. To EN | (Db(A)) | 70 | ||||
