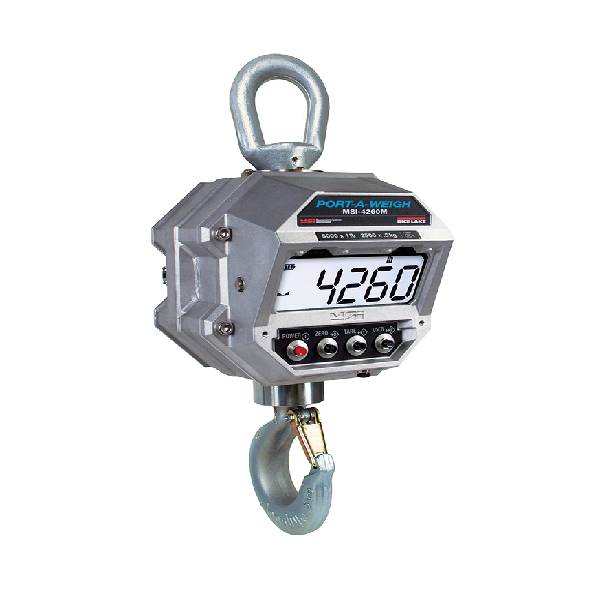

MSI-4260M Port-A-Weigh Industrial Crane Scale

Categories:

Call for price

  • IP66 cast aluminum
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • Five-digit, 1.75in (44.5mm) LCD with programmable brightness control
  • Battery operated, six (6) D cell 1.5V alkaline batteries or
  • 12 volt rechargeable battery. (115/230 VAC battery charger is included)
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards
  • (5:1 Ultimate Safety Factor)
  • NTEP Certified configuration



Options
(Contact MSI for application consultation)

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, (typically 100 ft – 300 ft, line of sight, for longer range consult factory), TranSend and LaserLight2 remote display
  • Wi-Fi and Bluetooth® communication are available for specialty applications.
GET QUOTATION

Brand:

MSI-4260M Port-A-Weigh Industrial Crane Scale

Categories:

Call for price

  • IP66 cast aluminum
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • Five-digit, 1.75in (44.5mm) LCD with programmable brightness control
  • Battery operated, six (6) D cell 1.5V alkaline batteries or
  • 12 volt rechargeable battery. (115/230 VAC battery charger is included)
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards
  • (5:1 Ultimate Safety Factor)
  • NTEP Certified configuration



Options
(Contact MSI for application consultation)

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, (typically 100 ft – 300 ft, line of sight, for longer range consult factory), TranSend and LaserLight2 remote display
  • Wi-Fi and Bluetooth® communication are available for specialty applications.

Tags:

GET QUOTATION

MSI-4260M Port-A-Weigh Industrial

Accuracy:
± 0.1% +1 d of applied loadResolution:
Max NTEP Approved Class III: 2,500 Divisions
Max NTEP Approved Class IIIL: 5,000 Divisions
Max Non NTEP Approved: 10,000 DivisionsEnclosure:
IP66 cast aluminumLifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power: Turns Unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode, User: Programmable as test, total, unit, peak hold, net/gross, view total and print
User: Programmable as test, total, unit, peak hold, net/gross, view total and print

 Display:
Five-digit,  1.75in (44.5 mm) LCD with programmable brightness controlDisplayable Units:
Pounds or kilograms selectableAnnunciators:
COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDsPower:
Battery operated, six (6) D cell 1.5 V alkaline batteries (115/230 VAC battery charger included)

Operating Time:
Six (6) D Cell 1.5V alkaline batteries: Up to 1,000 hours of battery life with typical use, less with RF modem 12 volt rechargeable battery: Up to 250 hours between charging with typical use, less with RF modem.

Operating Temperature:
Legal for Trade: 14°F to 104°F (-10°C to 40°C)
Operating: -20°F to 122°F (-28°C to 50°C)

Auto-Off Mode:
Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable

 Auto Sleep Mode:
Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectableService Counters:
Counts number of lifts over percentage of capacity and lifts over capacityCalibration:
Digital (procedure initiated by calibration switch)Filtering:
OFF, LO, HI-1 or HI-2 selectable

Radio Link:
802.15.4 at 2.4 GHz

Radio Effective Range:
Typically 100-300 ft line of sight

Warranty:
One-year limited warranty

Approvals:
NTEP COC 19-122

Additional information

Model

SL15, SL30, SL50, SL100, SL300, SL500, SL1000
