Brand:

BEL, Moisture Analyzer - M5-Thermo Series

4,640.00 AED7,265.00 AED (Excl. VAT)

Moisture Analyzer with advanced functions
  • Brand: BEL Engineering (Italy)
  • 5” Color Touch Screen
  • Pan size: 100mm sample pan
  • Made in Italy
M5-Thermo 62L, 60g / 0.01g
4,640.00 AED (Excl. VAT)
M5-Thermo 163L, 160g / 1mg
5,105.00 AED (Excl. VAT)
M5-Thermo 163M, 160g / 1mg
6,565.00 AED (Excl. VAT)
M5-Thermo A64M, 60g / 0.1mg
7,265.00 AED (Excl. VAT)
GET QUOTATION

Brand:

BEL, Moisture Analyzer - M5-Thermo Series

4,640.00 AED7,265.00 AED (Excl. VAT)

Moisture Analyzer with advanced functions
  • Brand: BEL Engineering (Italy)
  • 5” Color Touch Screen
  • Pan size: 100mm sample pan
  • Made in Italy
M5-Thermo 62L, 60g / 0.01g
4,640.00 AED (Excl. VAT)
M5-Thermo 163L, 160g / 1mg
5,105.00 AED (Excl. VAT)
M5-Thermo 163M, 160g / 1mg
6,565.00 AED (Excl. VAT)
M5-Thermo A64M, 60g / 0.1mg
7,265.00 AED (Excl. VAT)
GET QUOTATION

ModelCapacity / DivisionPrice
Model: M5-Thermo 62LCapacity / Division: 60g / 0.01gPrice: 4,640.00 AED (Excl. VAT)
Model: M5-Thermo 163LCapacity / Division: 160g / 1mgPrice: 5,105.00 AED (Excl. VAT)
Model: M5-Thermo 163MCapacity / Division: 160g / 1mgPrice: 6,565.00 AED (Excl. VAT)
Model: M5-Thermo A64MCapacity / Division: 60g / 0.1mgPrice: 7,265.00 AED (Excl. VAT)

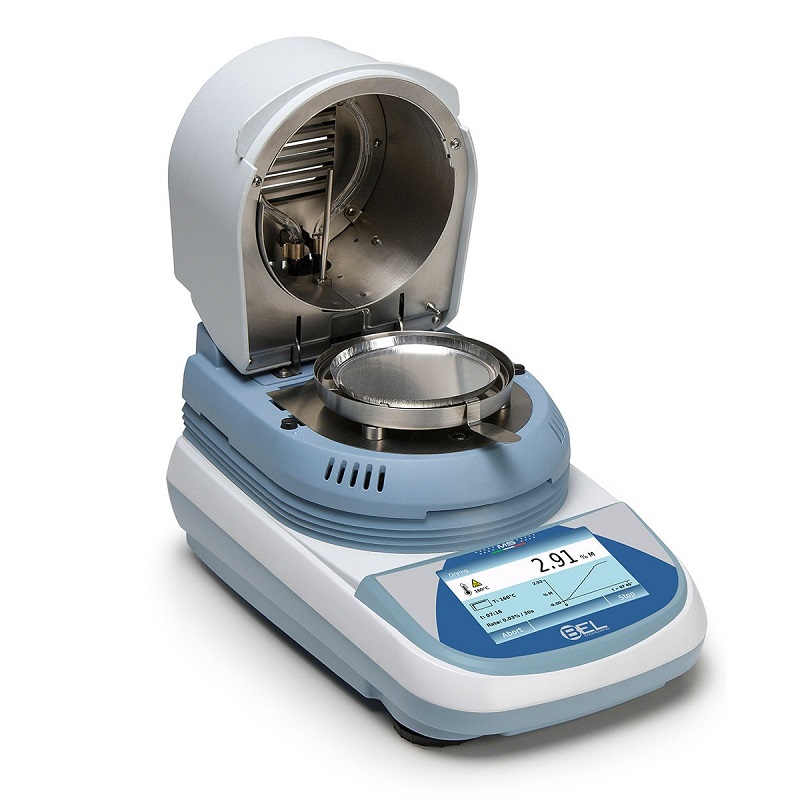

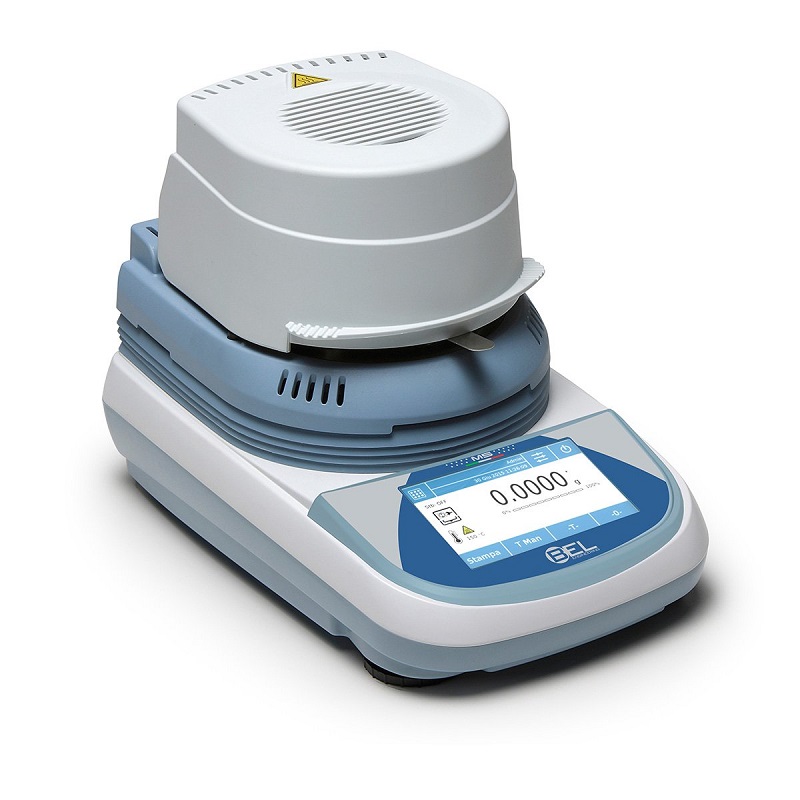

M5-iThermo balances are moisture analyzers with a large 5’’ color touchscreen display that gives user-friendly access to all the moisture analyzer’s advanced applications and internal databases. The user has easy and intuitive access with fast programming of drying cycles, thanks to icon-driven menus. This means more efficiency, productivity, and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case. The many on-board functions already included, the possibility of calibrating the internal thermometer using the optional KIT (STCi-02), up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient. The models in the family allow us to reach up to 0,001% drying resolution.
  • Electromagnetic force restoration weighing system (A64M and 163M)
  • High-resolution load cell weighing system (163L and 62L)
  • Halogen-infrared lamp
  • External calibration
  • Large 5’’ color touchscreen 800×480 display
  • RS232 serial interface
  • Drying resolution 0,001% (-A64M), 0,01% (-163M and -163L), 0,1% (-62L)
  • Drying modes: Time mode (1-99 min.), Autostop % or absolute autostop in grams, Manual

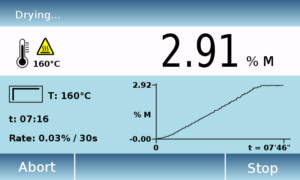

  • Live Graph of humidity content changing
  • Temperature range:35-160°C, the step of 1°C
  • Temperature Profiles: Standard, fast, mild, steps
  • Results in: Humidity %, Dry residue %, ATRO %, Weight
  • Test results complete of full drying cycle Graph
  • Up to 10 hotkeys for fast recall of drying cycles from the internal database
  • Default database stored already with more than 30 products
  • Saving results with test reports and drying graphic up to 3000 records, for each user
  • Customizable settings for up to 10 users with the possibility of password protection
  • Serial output for connection to the printer, USB port for export or import database, test results, etc.


Optional Accessories

  • Thermometer calibration KIT (STCi-02)
  • Serial Printer TLP-50, with date/time (C054)
  • TEST pans (Ø 100mm x 0,5mm) (A753)
  • Fiber glass TEST pans (Ø 90mm) (AC026)
  • Ioniser Ion-A15 (BL0371)
  • Factory Calibration certificate (BL0333)
  • Usb pendrive 8Gbyte (AC020)
  • Touchscreen Stylus pen (AC021)


Additional information

Model

M5-Thermo A64M, M5-Thermo 163M, M5-Thermo 163L, M5-Thermo 62L

Capacity / Division

60g / 0.1mg, 160g / 1mg, 160g / 1mg, 60g / 0.01g

Scale Division

0.001g (1mg), 0.01g (10mg)

Scale Capacity Range (Table, Balances)
