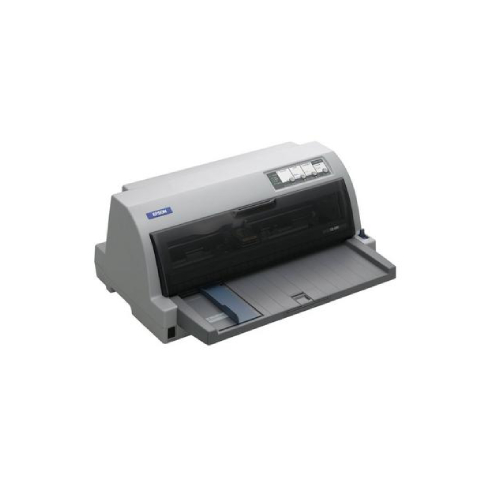

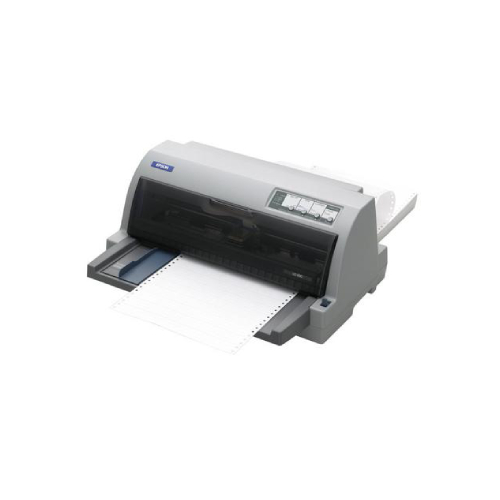

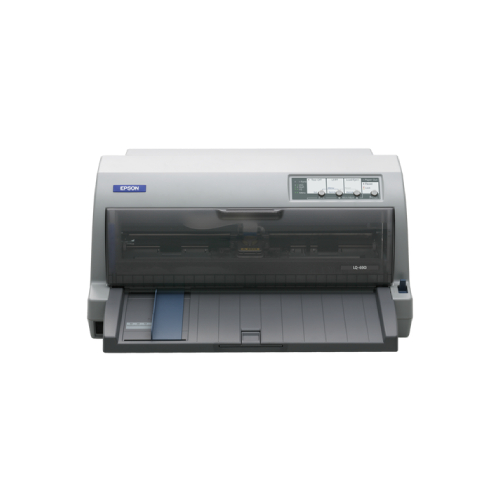

LQ-690 – Dot Max Printers

Call for price

  • Quality The 106 column capacity with 24 pins means greater quality
  • Speedy Impressive print speed of 529 cps
  • Productive Big memory buffer of 128 KB and built-in Print Speed Enhancer
  • Reliable Combined power of print head life and MTBF of 20,000 hours
  • Energy efficient Low power consumption so better for environment
GET QUOTATION

LQ-690 – Dot Max Printers

Call for price

  • Quality The 106 column capacity with 24 pins means greater quality
  • Speedy Impressive print speed of 529 cps
  • Productive Big memory buffer of 128 KB and built-in Print Speed Enhancer
  • Reliable Combined power of print head life and MTBF of 20,000 hours
  • Energy efficient Low power consumption so better for environment
GET QUOTATION

Tech Specs
The product features and specifications are subject to change without prior notice

Technology
Printing Method: Impact dot matrix
Number of Pins: 24 pins
Number of columns: 106 columns
Pins: 24 Needles

Print
Printing Speed : HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s
Barcodes : Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies : 6 plus one original
Character Tables : PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution : 360 x 180 DPI

Connectivity
Interfaces : USB 2.0, Bidirectional parallel

Paper / Media Handling
Document Feed : Single sheet front, Continuous media rear, Paper output front
Paper Formats : Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper : 0,065 mm – 0,49 mm
Paper Thickness Label Base Sheet : 0,16 mm – 0,19 mm
Paper Thickness Label Total Sheet : 0,16 mm – 0,19 mm
Paper Thickness Multi Part : 0,12 mm – 0,49 mm
Paper Thickness Single Sheet : 0,065 mm – 0,19 mm

General
Power consumption : 38 Watt, 3 Watt (standby)
Product dimensions : 480‎ x 370 x 210 mm (Width x Depth x Height)
Product weight : 6,8 kg
Supported Temperature : Operation 5° C – 35° C
Supported Humidity : Operation 10% – 80%
Compatible Operating Systems : Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included Software : Epson Status Monitor
Mean Time Between Failures : 20.000 hours
Print Head Life : 400 Million Strokes/Wire
Noise : Operation: 57 dB (A)- Standby: 54 dB (A)
Fonts : Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory : 128 kB Included

Additional information
