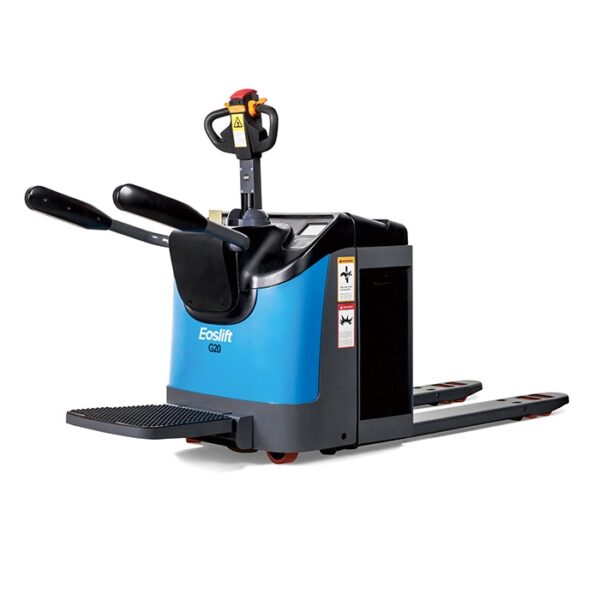

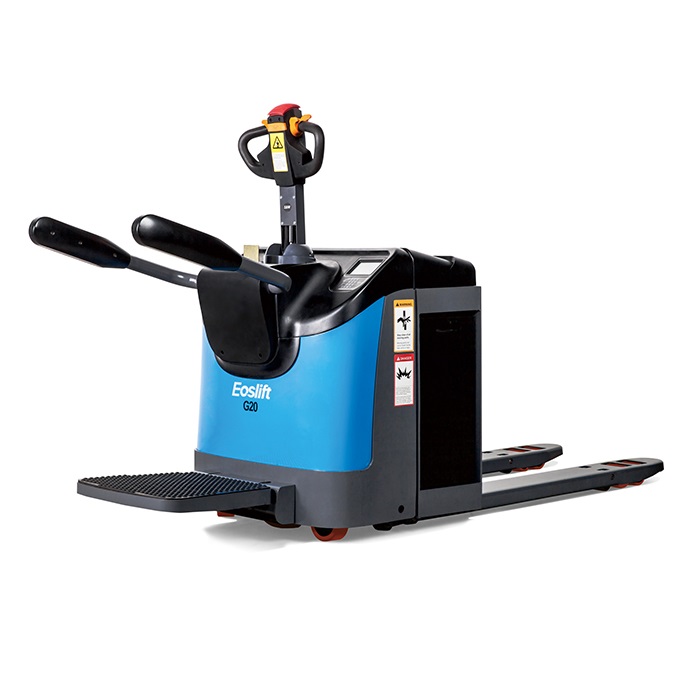

G20/25 Electric Pallet Trucks – High Performance (2 Ton / 2.5 Ton)

The G20/25 electric pallet trucks are designed for demanding industrial environments, offering a balance of power, safety, and intelligent control. With load capacities of 2 ton and 2.5 ton, they feature a 5-point low center of gravity design and high-strength steel frame for superior stability and durability. The floating suspension system enhances traction and reduces slip, while critical components are imported to ensure high operational reliability.

General Information

• Model G20 G25
• Power Battery
• Operation Mode Standing
• Rated Capacity lb. 4400 5500
• Load Center in. 23.6
• Wheel Base in.1 56.8
• Service Weight lb. 1243

Wheel

• Wheel PU
• Drive Wheel in. Φ9.1×3.9
• Load Wheel in. Φ3.3×3.3
• Balance Wheel in. Φ4.9×2.4
• Number Of Wheels,Drive/Load 1/2/4
• Wheelbase,Drive in. 23.1
• Wheelbase,Load in. 20.1

Size

• Max. Lift Height in.2 4.7
• Min. Fork Height in.4 3.0×2.9
• Fork Length in.8 45.2×44.1
• Fork Width in.7 22.1×27
• Aisle width for pallets 1000×1200 Crossways in. 101.2/116.7(103.9/119.5)
• Aisle width for pallets 800×1200 Crossways in. 80.5/111.7(98.9/75.1)
• Ground Clearance,Wheelbase Center in. 1.2
• Overall length(pedal folded/unfolded) in.5 77.6/93.7(3.9/3.0)
• Overall Width in.6 32.6
• Turning radius(pedal folded/unfolded) in.109 70.0/85.1(72.4/87.9)

Performance

• Travelling Speed,Laden/Unladen in./s 87.5/109.4
• Lifting Speed,Laden/Unladen in./s 1.2/1.3
• Gradeability,Laden/Unladen % 5/8
• Service Brake Electromagnetic

Drive

• Driving Motor/Power KW AC1.7
• Lifting Motor/Power KW DC3.0
• Steering Motor/Power KW DC0.27
• Battery Voltage V/Ah 24/350
• Battery Weight lb. 290
• Controller Curtis-AC

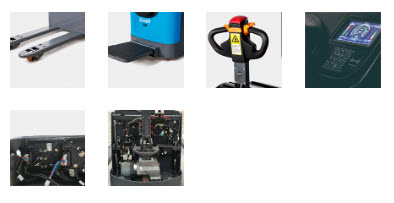

Product Features

Key Features:

Reliability

• Reinforced steel structure with deformation-resistant pull-rod design

• High-strength formed forks for tough applications

• Floating suspension system enhances grip and stability

• Equipped with imported core components for long-lasting performance

Safety

• Emergency reverse and brake functions for instant response

• Sturdy arm guard design to protect the operator

• Curve control technology for safe, stable turning at large angles

• Auto-folding pedal reduces speed during pedestrian mode for added safety

Comfort

• Ergonomic handle with intuitive button layout

• Quiet, efficient EPS (Electric Power Steering) for one-hand operation

• Creep-speed mode for tight-space maneuvering

• Standing pedal with vibration reduction minimizes fatigue over long distances

Easy Maintenance

• Maintenance-free AC drive motor — no carbon brush replacement needed

• CANBUS system for rapid diagnostics and reduced service time

• Side-pull battery system for easy replacement

• Integrated LIONMAN HMI system for monitoring and maintenance

High Efficiency

• High-power imported AC motor delivers rapid acceleration

• Long-life high-capacity battery with low-battery locking to preserve battery health

• Regenerative and electromagnetic braking improves energy recovery and control

Intelligent Control

• LIONMAN Fleet Management System offers:

  • Operator access control

  • Real-time truck monitoring

  • Automated notifications and reporting

• Human-Machine Interface (HMI) shows real-time truck status and fault diagnostics
