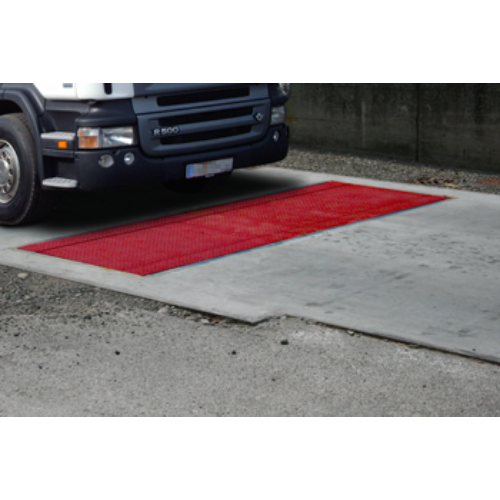

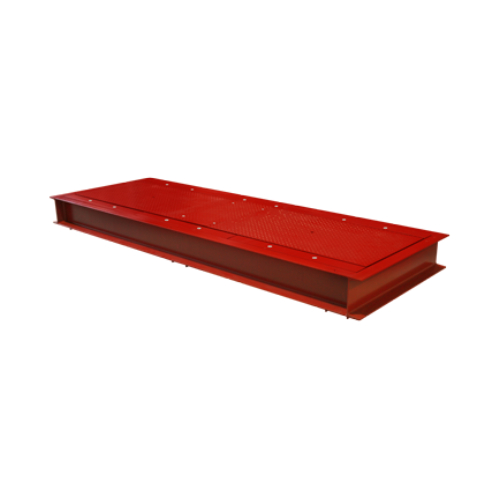

Flush-floor platform for axle weighing stations

Call for price

Technical features

  • Designed for controlled-access weighing stations, with vehicle transit at reduced speed within 5km/h (refer to installation manual for more information)
  • Accuracy 1% for internal use, 2% for legal trade use. These accuracies can be obtained by following the installation specifications and instructions in the installation manual.
  • Anti-slipping loading surface made of sheet metal sized to withstand any load on the basis of the parameters dictated by Directive 96/53/EC (maximum load on the single axle for vehicles transiting in Europe).
  • Steel beam supporting structure.
  • Sized to weigh axles up to 20t and detect axle overloads up to 30t* (refer to the product manual for use and maintenance conditions).
  • Complete with a frame for the containment, made up of a single-bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.

(*) Sized to weigh axles up to 20t and detect axle overloads up to 30t (refer to the product manual for use and maintenance conditions).

GET QUOTATION

Brand:

Flush-floor platform for axle weighing stations

Call for price

Technical features

  • Designed for controlled-access weighing stations, with vehicle transit at reduced speed within 5km/h (refer to installation manual for more information)
  • Accuracy 1% for internal use, 2% for legal trade use. These accuracies can be obtained by following the installation specifications and instructions in the installation manual.
  • Anti-slipping loading surface made of sheet metal sized to withstand any load on the basis of the parameters dictated by Directive 96/53/EC (maximum load on the single axle for vehicles transiting in Europe).
  • Steel beam supporting structure.
  • Sized to weigh axles up to 20t and detect axle overloads up to 30t* (refer to the product manual for use and maintenance conditions).
  • Complete with a frame for the containment, made up of a single-bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.

(*) Sized to weigh axles up to 20t and detect axle overloads up to 30t (refer to the product manual for use and maintenance conditions).

GET QUOTATION

Note: The product requires special transport, with a quote.

Technical features

  • Designed for controlled-access weighing stations, with vehicle transit at reduced speed within 5km/h (refer to installation manual for more information)
  • Accuracy 1% for internal use, 2% for legal trade use. These accuracies can be obtained by following the installation specifications and instructions in the installation manual.
  • Anti-slipping loading surface made of sheet metal sized to withstand any load on the basis of the parameters dictated by Directive 96/53/EC (maximum load on the single axle for vehicles transiting in Europe).
  • Steel beam supporting structure.
  • Sized to weigh axles up to 20t and detect axle overloads up to 30t (refer to the product manual for use and maintenance conditions).
  • Complete with a frame for the containment, made up of a single-bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Dimensions of the load surface (L*W): 3 x 0.73 m.
  • 6 compression load cells, class C3, stainless steel, with IP68 protection.
  • 20m cable for connection to the weight indicator.
  • Dust and waterproof wirings and connections, easy to connect and disconnect.
  • Hermetic junction box.
  • Central inspected trapdoors for ordinary maintenance.
  • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the platform also without an electrical power supply.



Main applications

The axle weighing system is ideal to:
– Check the weight of each axle or of all the various sums of weights and detect any overloads.
– Check the weight of the material transported by the vehicle and carry out simple checks on incoming/outgoing goods.

Additional information

Mode;

RWS

Dimensions

3000×730

Number of cells

6 x 12500kg

Capacity

30t

Division

20
