Brand:

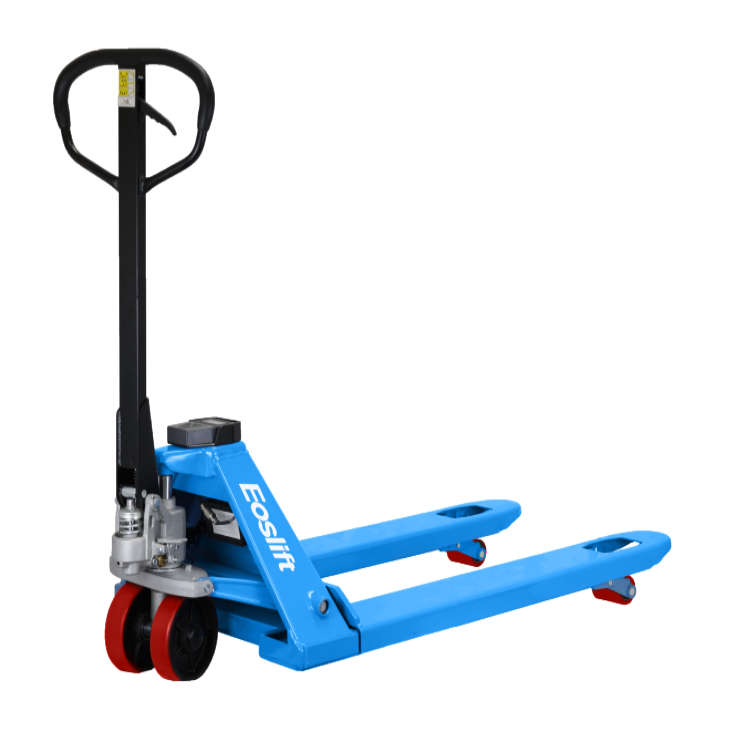

E20V – Scale Pallet Truck

Categories:

Call for price

Coming Soon

  • Model: E20V
  • Capacity: 2ton
  • Rated Capacity: lb. 4400
  • Load Center: in. 23.6
  • Service Weight: lb. 247
  • Wheel: PU/NYLON
  • Accuracy: % 0.1
  • Max.Lif Height: in.H 7.5
  • Min.Fork Height: in.H1 2.95
  • Steering Wheel: in. φ7.1×2
  • Single Load-bearing Wheel: in. φ2.9×3.7
  • Overall Fork Width: in.B 27
  • Fork Length: in.L 45
  • Length of the Truck: in.L1 65
  • Minimum Turning Radius: in.R 52.1
  • Battery Type: AAA battery
  • Battery Capacity: mAh 6xAAA
GET QUOTATION

Brand:

E20V – Scale Pallet Truck

Categories:

Call for price

Coming Soon

  • Model: E20V
  • Capacity: 2ton
  • Rated Capacity: lb. 4400
  • Load Center: in. 23.6
  • Service Weight: lb. 247
  • Wheel: PU/NYLON
  • Accuracy: % 0.1
  • Max.Lif Height: in.H 7.5
  • Min.Fork Height: in.H1 2.95
  • Steering Wheel: in. φ7.1×2
  • Single Load-bearing Wheel: in. φ2.9×3.7
  • Overall Fork Width: in.B 27
  • Fork Length: in.L 45
  • Length of the Truck: in.L1 65
  • Minimum Turning Radius: in.R 52.1
  • Battery Type: AAA battery
  • Battery Capacity: mAh 6xAAA
GET QUOTATION

The E20V scale pallet truck delivers both lifting and weighing capabilities in a single unit, ideal for fast-paced warehouse and logistics environments. Built with a German-engineered reinforced steel structure and precision robotic welding, it ensures long-term durability and professional-grade performance. This model supports loads up to 2 tons (2000 kg) with fork dimensions of 27″ x 45″, and offers a lift height of 7.5 inches. It features a galvanized casted one-piece hydraulic pump, polyurethane wheels with steel hubs, and ergonomic padded handles for smooth, efficient movement. The integrated scale system enhances workflow accuracy, while the emergency replaceable check valve system adds safety and protection. Includes a 3-year limited warranty.

Product features

E20V-1E20V-2E20V-3vibration and improves the measurement accuracy Accuracy±4 Lbs Galvanized fully enclosed hydraulic pump 3 position control handles Powder coated paint
Ergonomic A-handle Easy 55° turning radius Emergency replacement hydraulic check valve AAA battery, easy to change Battery life: 300 operating hours (backlight off)
