Categories: Pallet Stacker, Semi Electric Pallet Stacker
9,610.00 AED (Excl. VAT)
9,610.00 AED (Excl. VAT)
| Model | Weighing Scale Capacity | Model | Fork Length | Fork Width | Lifting Height | Lifting Capacity (Weight) | Price |
|---|---|---|---|---|---|---|---|
| DYC10 | 1000kg | DYC10 | 1070mm | 320mm | 3000mm | 1000kg | Call for price |
| DYC15 | 1.5 Ton | DYC15 | 1070mm | 320mm | 3500mm | 1.5 Ton | 9,610.00 AED (Excl. VAT) |
| DYC20 | 2 Ton | DYC20 | 1070mm | 320mm | 3000mm | 2 Ton | Call for price |

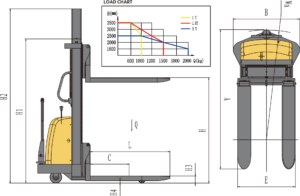

SPECIFICATIONS
| MODEL | DYC10 | DYC15 | DYC20 | |||
| CHAR | ACTERISTICS | |||||
| 1.1 | Capacity | Q | kg | 1000 | 1500 | 2000 |
| 1.2 | Load center | C | mm | 450 | 450 | 450 |
| 1.3 | Lifting height | H | mm | 1600/2000/2500/3000/3300/3500 | 1600/2000/2500/3000/3300/3500 | 800/1600/2000/2500 |
| 1.4 | Lowered height of fork | H3 | mm | 85 | 85 | 85 |
| 1.5 | Fork length | L | mm | 1000/1150 | 1000/1150 | 1000/1150 |
| 1.6 | Fork size | mm | 54*160 | 54*160 | 54*160 | |
| 1.7 | Fork width | E | mm | 320~540 / 320~680 Adjustable | 320~540 / 320~680 Adjustable | 320~540 / 320~680 Adjustable |
| 1.8 | Turing Radius | Wa | mm | 1360 | 1360 | 1360 |
| 1.9 | Mast extend height | H2 | mm | 2065/2535/3035/3535/3835/4035 | 2065/2535/3035/3535/3835/4035 | 1300/2065/2535/3035 |
| 1.10 | Mast lower height | H1 | mm | 2065/1580/1830/2080/2230/2330 | 2065/1580/1830/2080/2230/2330 | 1300/2065/1580/1830 |
| 1.11 | Overall width | B | mm | 850/950 | 850/950 | 850/950 |
| 1.12 | Overall length | A | mm | 1690/1840 | 1690/1840 | 1870(800mm lifting) / 1720/1690/1840 |
| 1.13 | Minimum ground clearance | H4 | mm | 30 | 30 | 30 |
| LIFTI | NG SYSTEM | |||||
| 2.1 | Lifting speed(unladen/laden) | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 | |
| 2.2 | Lowering speed(unladen/laden) | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 | |
| 2.3 | Lifting motor | v/kw | 12/1.5 | 12/1.5 | 12/1.5 | |
| 2.4 | Battery capacity | v/ah | 12/120 | 12/120 | 12/120 | |
| 2.5 | Charger | v/a | 12/15 | 12/15 | 12/15 | |
| WEIG | HT | |||||
| 3.1 | Weight | kg | 380~460 | 380~480 | 380~480 | |
| Model | DYC10, DYC15, DYC20 |
|---|---|
| Weighing Scale Capacity | |
| Units | |
| Product type | |
| Warranty | |
| Model | |
| Fork Length | 1070mm |
| Fork Width | 320mm |
| Lifting Height | 3000mm, 3500mm |
| Lifting Capacity (Weight) | 1.5 Ton, 1000kg, 2 Ton |
