Brand:

BEL Engineering Micro Balance – Mu Series (0,001mg Division)

Call for price

Call for price
Call for price

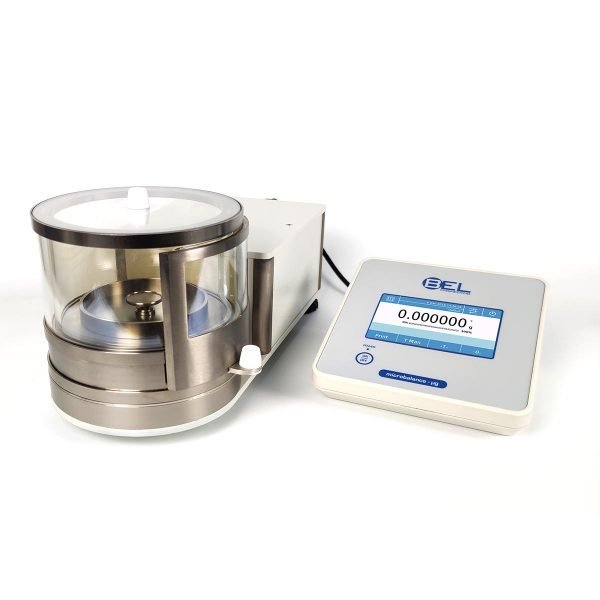

BEL Engineering introduce the new micro balance series “Mu” with 0,001mg resolution. Equipped with 5 inch color touch screen display that brings outstanding ease of use thanks also to the innovative wide double glass wind-shield that allows the user to weigh the samples with comfort. Advanced and efficient filtering algorithms will deliver quick and accurate results and many embedded functions to meet all the laboratory requirements. A bench ioniser is provided as standard to neutralize static electricity on charged samples.

GET QUOTATION

Brand:

BEL Engineering Micro Balance – Mu Series (0,001mg Division)

Call for price

Call for price
Call for price

BEL Engineering introduce the new micro balance series “Mu” with 0,001mg resolution. Equipped with 5 inch color touch screen display that brings outstanding ease of use thanks also to the innovative wide double glass wind-shield that allows the user to weigh the samples with comfort. Advanced and efficient filtering algorithms will deliver quick and accurate results and many embedded functions to meet all the laboratory requirements. A bench ioniser is provided as standard to neutralize static electricity on charged samples.

GET QUOTATION

ModelWeighing Scale CapacityScale DivisionCalibrationPrice
Mu 66i6.1g0.001mg (1µg)Automatic internalCall for price
Mu 26i2.1g0.001mg (1µg)Automatic internalCall for price
  • 5 inch touch screen indicator that makes easy the operation and the navigation through the balance functions
  • Double wind shield for enhanced ventilation and temperature variation protection
  • External ioniser included with the balance to eliminate static charges
  • Automatic internal calibration
  • Wide range of embedded functions such us formulation, GLP, advance piece-counting etc.., 7 languages interface



A clear interface will show all the data also with real time bars


A wide number of embedded functions come embedded with the balance

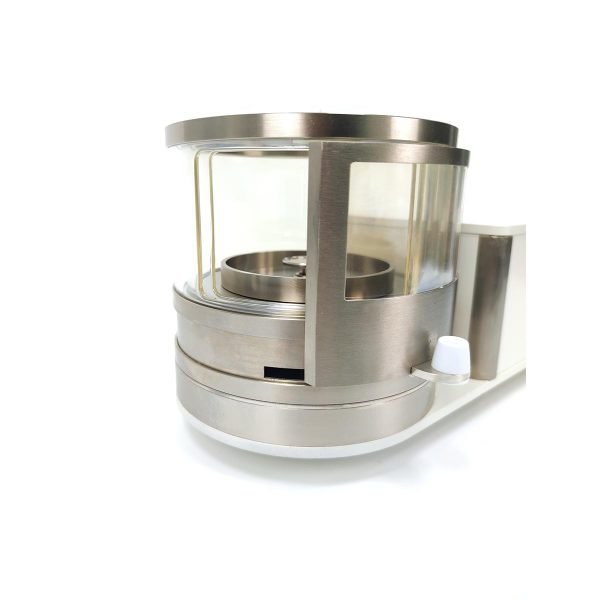

The double wind-shield is built with a metal evaporated metal coating to help to reduce at minimum static charges

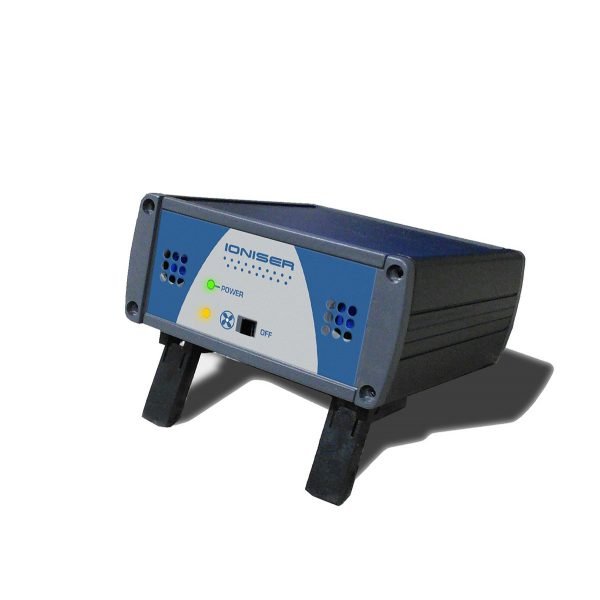

A ioniser is provided together with the balance. By blowing ions it neutralizes static electricity on charged samples like plastic parts, containers or films



Technical Features

Capacity [Max] 2,1g
Resolution [d] 0,001mg
Tare Range – 6,1 g
Repeatability (St. Dev.) (2 g) 0,004 mg
Repeatability (St. Dev.) (Max) 0,005 mg
Repeatability (St. Dev.) typical (2 g) 0,004 mg
Repeatability (St. Dev.) typical (Max) 0,004 mg
Minimum weight (USP) 10 mg
Minimum weight, typical (USP) 8 mg
Linearity Deviation, Typical ± 0,01 mg
Eccentric Deviation, Typical (Test Load) 0,01 mg (2g)
Response time (sec.) ≤ 8
Calibration Automatic internal
Typical Sensitivity Offset ± 2ppm/°C
Display 5″ Touch screen
Operating languages Italian, English, Portuguese, Deutsch, Francaise, Español, Chinese
Interface RS232, USB (import/export data)
Pan size 30mm
Operating Environment +15 °C – +30 °C , 45-65% Relative Humidity (non condensing)
Operating temp. variation rate ± 0,5 °C/h
Relative humidity variation rate ± 2%/h
Verification N/A
Power Supply (balance) 110-230Vac, 50/60Hz; output 24V 1A multi plug
Power Supply (ioniser) 110-230Vac, 50/60Hz; output 12V 1A multi plug
Standard Accessories Ioniser, E1 class 2 g weight, tweezer, gloves
Balance Dimensions (WxLxH) 165 x 480 x 205 mm
Indicator dimension 173(D) x 180(W) x 92(H) mm
Distance pan/top wind shield 75 mm
Wind Shield internal diameter 165 mm

Repeatability is expressed as a standard deviation from 10 weighing cycles.
Stabilization time depends on the external environment conditions.
