Advance Scales

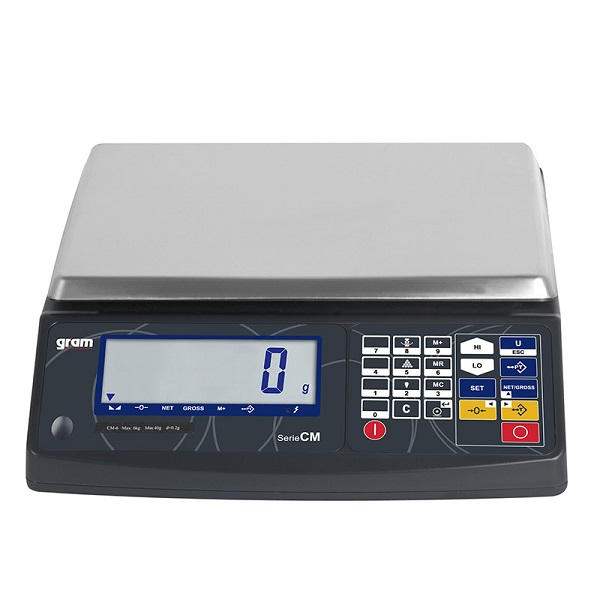

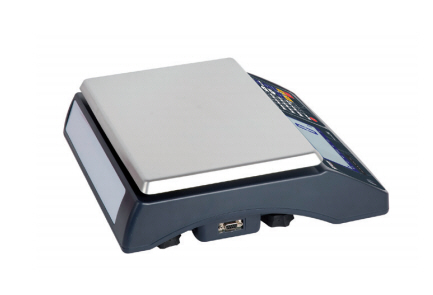

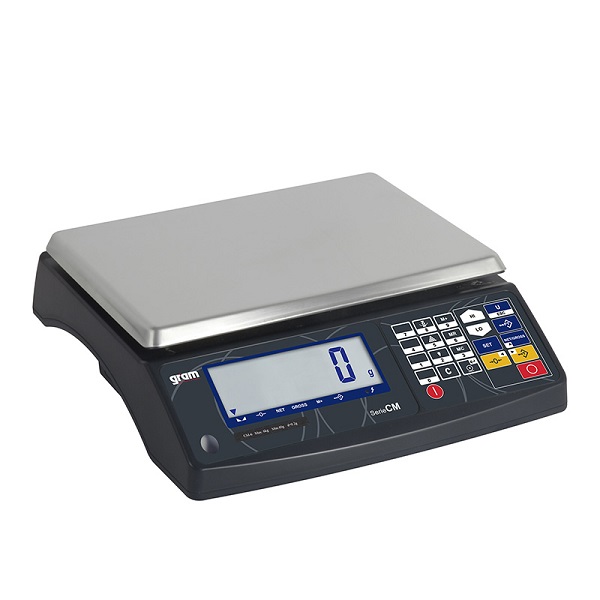

GRAM CM

High accuracy, general use table weighing scale
Large stainless steel pan size
Large LCD display with back light: 30mm height
High display Resolution (external): 1/30,000
Parts-counting function
Check weighing with visual and sound indication
Weight accumulation
Optional RS232 data output to connect a PC or a printer
Electronic filter to weigh live animals
Programmable auto-off
Internal rechargeable battery
Ideal for many food, industrial and automotive needs
Large stainless steel pan
Multifunctional keyboard

Specifications

OIML-C3 load cells
Display Resolution (external): 1/30,000
220 x 310mm (Stainless Steel, and 1.0mm in thickness)
Units: kg, g, lb.
RS232 interface (Optional) for PC or Printer
AC 100~240V / rechargeable battery (6 V/ 4 AH)
Function: auto calibration, TARE, Zero, Auto Zero, Print, Auto-off function, LCD display with automatic backlight
Check weighing with visual and sound indication
Parts-counting function
Weight accumulation
Auto-hold function
Electronic filter to weigh animals
Programmable auto-off

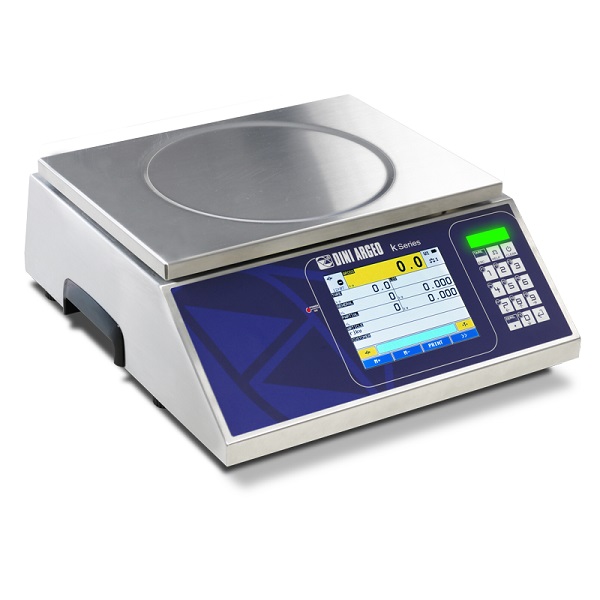

Dini Argeo KST

STAINLESS steel digital scales body, resistant and easy to clean.
Stainless steel load plate, inspection able and easily cleanable. Dimensions: 250x340mm.
OIML R60 C6 approved aluminum load cells.
Supplied with alibi memory, integrated on the motherboard.
Possibility of connection to one remote scale via serial, or of additional platforms (up to 3).
Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizable.
3-colors control light.
Waterproof keyboard and multifunctional programme.
IP44 protection.
Non-slip adjustable feet.
Ergonomic lateral handle.
Level positioned under the plate.
Serial port RS232 for connection to PC or printer.
Digital scale power supply: internal rechargeable battery (operating time 40h approximately) or external power supply/battery charger.

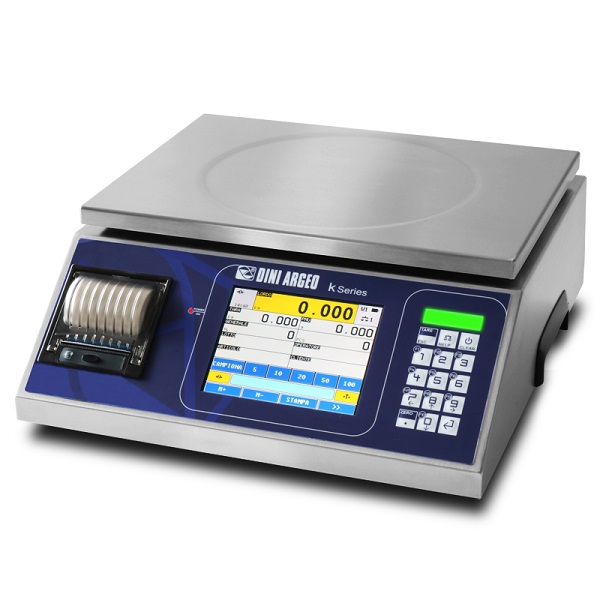

TPRP integrated printer in KST6P and KST30P versions.

DIGITAL SCALES: I/O SECTION

2 Serial ports RS232, for connection to printer, PC or PLC, radio module and optional interfaces.
1 Serial ports RS232 (RS485 optional), for connection to repeater, remote scale, badge reader or digital load cell.
Fitted with keyboard emulation input, for connection to barcode/badge reader or PC external keyboard, through cable with mini DIN connector (optional).
4 opto-isolated outputs (optional).
2 opto-isolated inputs (optional).
External Profibus interface (optional), for automation management.
Modbus RTU interface.
Optional Bluetooth connection, for wireless rapid archive configuration by PC, tablet or smartphone.
