Brand:

EOSLIFT TA Series Scissor Lift Table Truck

Call for price

The simplicity and compactness of carts make them suitable for lifting and transporting loads, order-picking, die-handling and assembly operations. An ergonomic solution to lifting, positioning and transporting.

Features:

  • Reinforced robotic welding
  • Table size 520X1010 mm
  • Powder coated paint
  • Raised height 39.4 in.
  • Hydraulic foot pump
  • Reliable & Stable
  • Safety & Comfort
TA-100, 520 x 1010 mm, 1000 Kg
Call for price

Available on backorder

TA-50, 520 x 1010 mm, 500 Kg
Call for price

Available on backorder

GET QUOTATION

Brand:

EOSLIFT TA Series Scissor Lift Table Truck

Call for price

The simplicity and compactness of carts make them suitable for lifting and transporting loads, order-picking, die-handling and assembly operations. An ergonomic solution to lifting, positioning and transporting.

Features:

  • Reinforced robotic welding
  • Table size 520X1010 mm
  • Powder coated paint
  • Raised height 39.4 in.
  • Hydraulic foot pump
  • Reliable & Stable
  • Safety & Comfort
TA-100, 520 x 1010 mm, 1000 Kg
Call for price

Available on backorder

TA-50, 520 x 1010 mm, 500 Kg
Call for price

Available on backorder

GET QUOTATION

MODELBOOM RANGECAPACITIESPrice
MODEL: TA-100BOOM RANGE: 520 x 1010 mmCAPACITIES: 1000 KgPrice: Call for price
MODEL: TA-50BOOM RANGE: 520 x 1010 mmCAPACITIES: 500 KgPrice: Call for price

This quality scissor lift table has several features that make it stand out as a dependable product.  Using modern robotic welding technology, this table provides a superior finish and durability.A solid, chrome-plated ram and piston minimize corrosion while the fully enclosed pump seals out contaminants and prevents oil leaks.  The overloaded valve is designed to prevent misuse and increase longevity, and the whole unit provides easy access to lubrication points for easy maintenance.  The German-engineered high quality poly seals ensure excellent performance.

The poly steel wheels are designed to provide exceptional maneuverability in tight areas.  This lift table uses a standard handle with a lift release lever and the foot pedal powers the hydraulic lift.

  • Over loaded valve design to prevent from misuse of the truck and reduce the
  • maintenance cost
  • Each cylinder is equipped with an internal hydraulic velocity fuse
  • The heavy duty steel construction is engineered to put up with tough environments

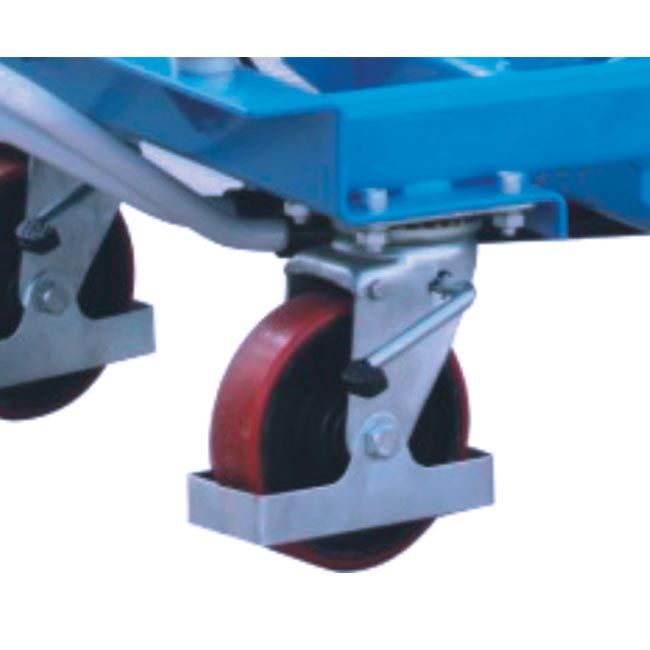

  • Two rigid front castors and two rear swivel (with brake) are more maneuverable in tight areas.
  • Safety stops minimize the risk of an empty deck from lowering while
  • performing maintenance
  • Diminish worker bending and lifting, which reduces risk of injury
  • Raise and lower the deck with minimum pains and strain

Additional information

MODEL

TA-100, TA-50

BOOM RANGE

520 x 1010 mm

CAPACITIES

1000 Kg, 500 Kg
