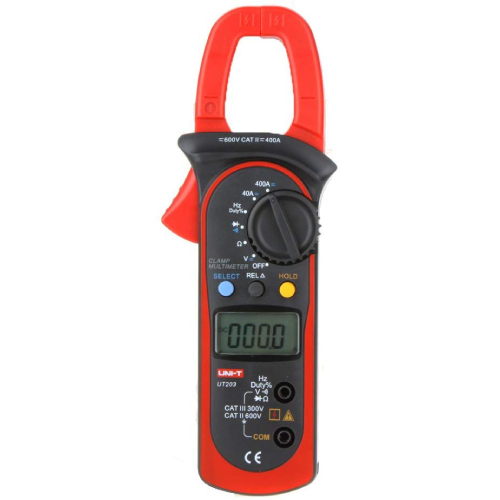

UT203 400A Digital Clamp Meter

226.00 AED (Excl. VAT)

Description

Features:

  • Relative mode for capacitance zeroing and offset adjustment
  • Auto range
  • Data hold/auto power off
  • 3 times/s sampling rate
  • Duty cycle
  • Low battery/over-range indication and auto polarity display

DESCRIPTION

This series is UNI-T’s entry level digital clamp meter. It is a great choice for measuring residential and commercial power wires.

SPECIFICATIONS

Specifications Range UT203
AC current (A) 400A ±(2.5%+5)
DC current (A) 400A  ±(2%+3)
AC voltage (V) 600V ±(1%+5)
DC voltage (V) 600V ±(0.8%+1)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 100μF
Frequency (Hz) 10Hz~10MHz ±(0.1%+3)
Display count 4000
Auto range
General Characterisitics
Power 9V battery (6F22)
Display 35.6mm x 18mm
Product color Red and grey
Product net weight 260g
Product size 208mm x 76mm x 30mm

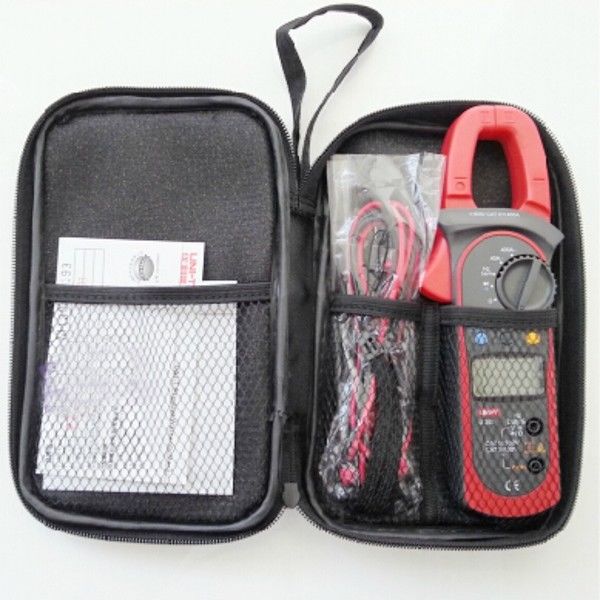

Standard accessories Batteries, test leads, carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 48pcs
Standard carton measurement 485mm x 320mm x 385mm
Standard carton gross weight 16.5kg

Brand

Uni-T

Additional information

MODEL

UT203

SIZE

AC/DC: 600 V
