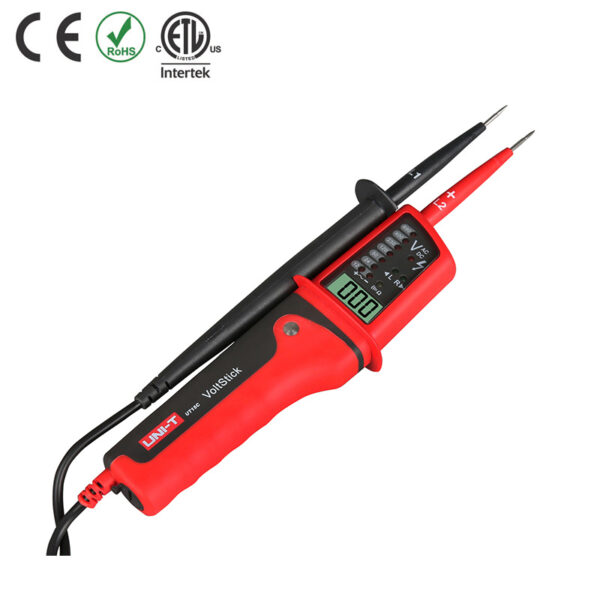

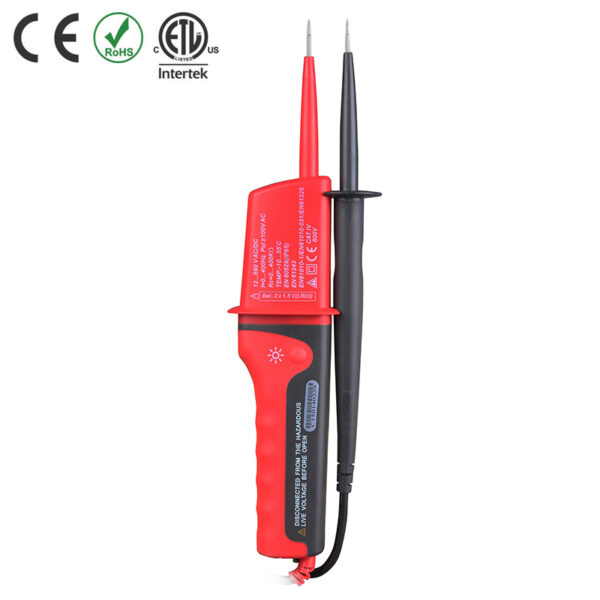

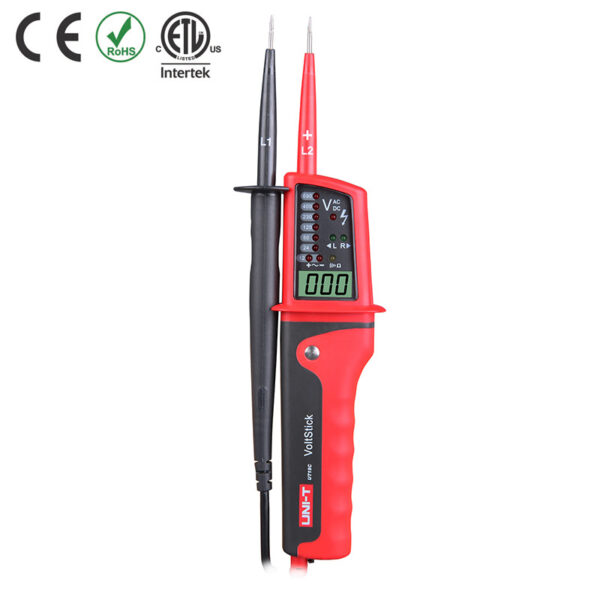

UT18C Voltage and Continuity Tester

188.00 AED (Excl. VAT)

UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

Description

UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

Specifications

Specifications Range UT18C
Voltage (V) 12V 8V±1V
24V 18V±2V
50V 38V±4V
120V 94V±8V
230V 180V±14V
400V 325V±15V
690V 562V±24V
Phase rotation test 57Vac~400Vac (3 phase)
Frequency: 50Hz~400Hz
Single lead (L2)
voltage detection
Operating voltage: 100V~690V
Frequency: 50Hz~400Hz
Continuity test Resistance: 0Ω~100kΩ (+50% accuracy)
Beeper and LED light indication
RCD test Operating voltage: 230V (50Hz~400Hz)
Polarity detection Positive & Negative
Self-inspection All LED or LCD
No power test Operating voltage: 100~690V
Features
Voltage indication LED
Exceed voltage Voltage range: 713V~788V
Auto standby Standby current<10μA
Slient mode All range
Work light
Low battery indication Around 2.5V
LCD display (voltage) 6V~690V ±(1.5%+5)
LCD display (Frequency) 40Hz~400Hz ±(3%+5)
IP65
General Characteristics
Power 1.5V battery (R03)×2
Display UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm
Product color Red and grey
Product net weight 280g
Product size (W x H x D) 272mm x 85mm x 31mm
Standard accessories Batteries

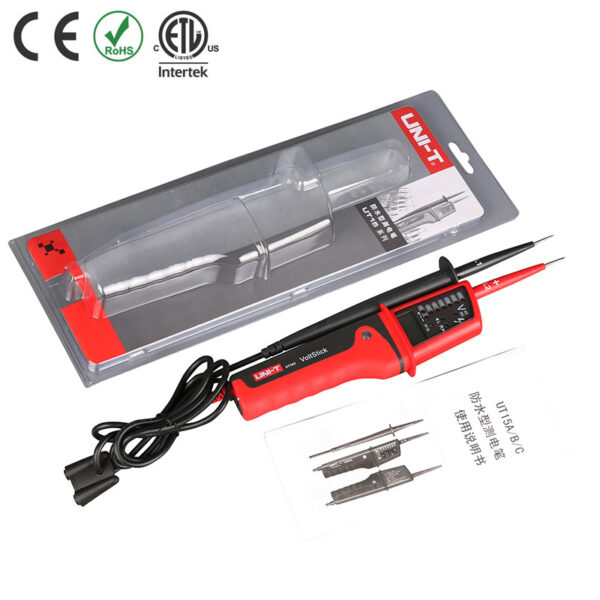

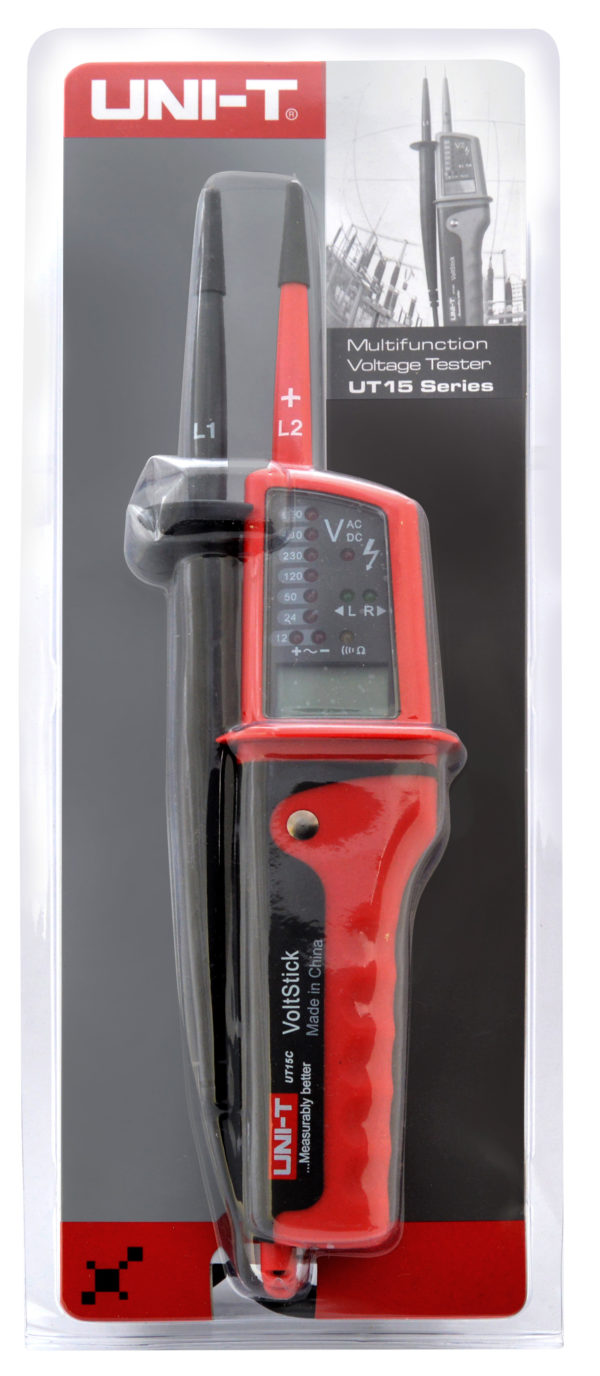

Standard individual packing Blister, English manual
Standard quantity per carton 30pcs
Standard carton measurement 440mm x 295mm x 455mm
Standard carton gross weight 17.5kg

Download Docs & Software

Catalog: UT18

Manual : UT18
