UT132A Palm Size Digital Multimeter

88.00 AED (Excl. VAT)

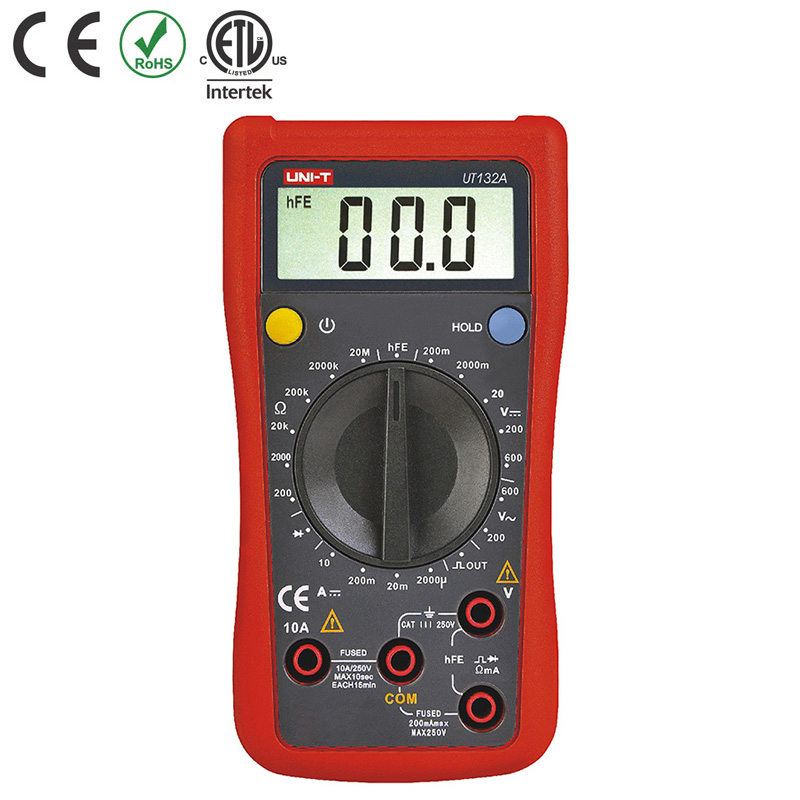

UNI-T’s UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.

Description

UNI-T’s UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.

Specifications

Specifications Range Best Accuracy
Model   UT132A
DC Voltage (V) EU: 200mV/2000mV/20V/ 200V/600V ±(0.5%+2)
ROW: 200mV/2000mV/20V/ 200V/250V ±(0.5%+2)
AC Voltage (V) EU: 200V/600V ±(1.2%+3)
ROW: 200V/250V ±(1.2%+3)
DC Current (A) 2000μA/20mA/200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ/20MΩ ±(0.8%+5)
Features
Display Count 2000
Manual Range
Square Wave Output
Diode
Transistor
Low Battery Indication
Data Hold
Input Impedance for DCV Around 10MΩ
General Characteristics
Power 9V battery (6F22)
LCD Size 49mm X 18mm
Product Color Red and grey
Product Net    Weight 200g
Product Size 72mm×137mm×35mm

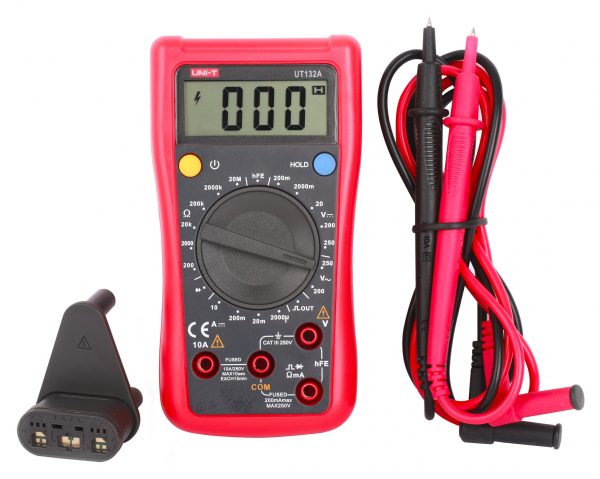

Standard Accessories Battery, test lead, Multi-purpose socket

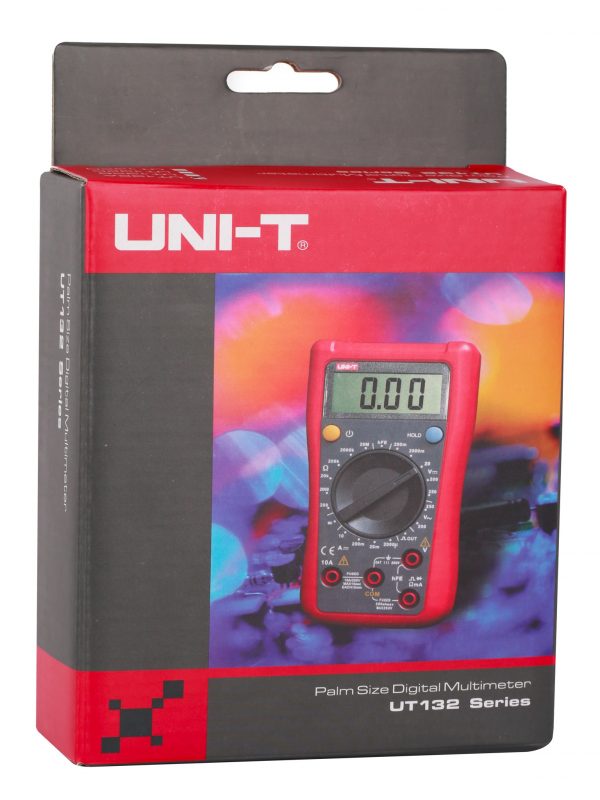

Standard Individual Packing Gift box, English manual
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 540mm × 360mm × 290mm (0.09CBM per standard carton)
Standard Carton Gross Weight 22.7kg



Download Docs & Software

Manual : UT132
