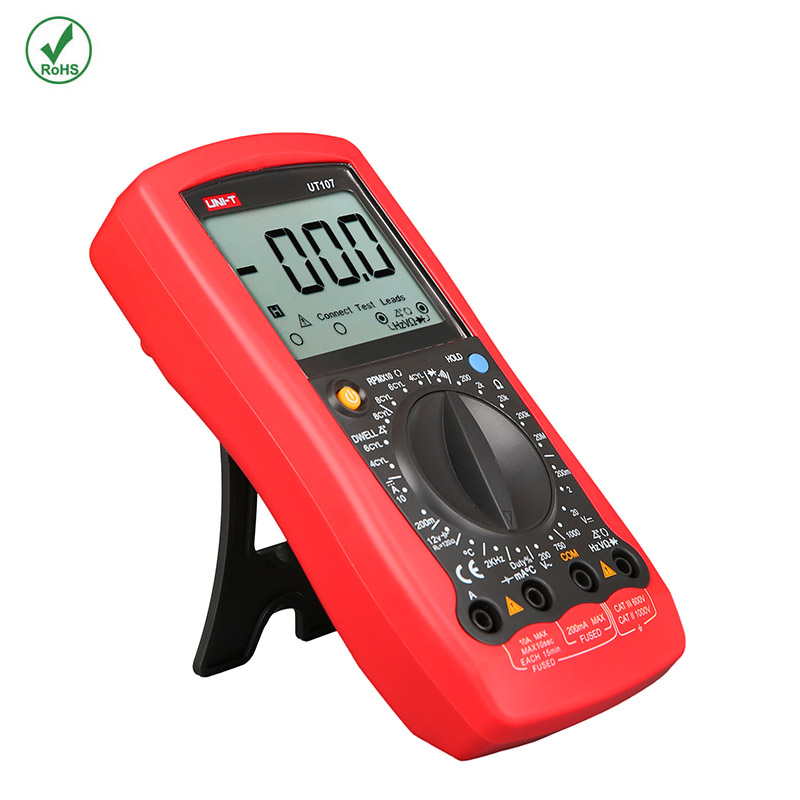

UT107 Automobile Multimeter

157.00 AED (Excl. VAT)

UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles.

Description

UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles.

Features

  • Diode/Data hold
  • Continuity buzzer
  • Low battery indication
  • Input protection

Specifications

Specifications Range UT107
DC voltage (V) 200mV/2V/20V/1000V ±(0.5%+2)
AC voltage (V) 200V/750V ±(0.8%+5)
DC current (A) 200mA/10A ±(0.8%+5)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/20MΩ ±(0.8%+5)
Frequency (Hz) 2kHz ±(2%+5)
Temperature (°C) -40°C~1000°C ±(2%+8)
Features
Display count 2000
Manual range
Battery test 12V ±(3%+5)
Duty cycle 1%~90% ±(4%+5)
Input impedance for DCV Around 10MΩ
Dwell/Tach 4CYL/6CYL/8CYL ±(3%+5)
General Characteristics
Power 9V battery (6F22)
Display 60mm x 54mm
Product color Red and grey
Product net weight 351g (including holster)
Product size 179mm x 88mm x 39mm
Standard accessories Battery, test leads, holster, point contact temperature probe
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 645mm x 450mm x 340mm
Standard carton gross weight  22.86kg



Download Docs & Software

catalog : UT07A

Manual : UT07A
