Multi Gauge 3-In-1 Tool ( Depth Gauge, Height Gauge, Thickness Gauge )

105,00 AED (Excl. VAT)

[posbadges]

Out of stock

  • 3-In-1 Tool – Depth Gauge, Height Gauge, Thickness Gauge
  • Large LCD Display; On/Off, Zero Set Functions



iGaging part number: 35-0906

GET QUOTATION

Brand:

Multi Gauge 3-In-1 Tool ( Depth Gauge, Height Gauge, Thickness Gauge )

105,00 AED (Excl. VAT)

[posbadges]

Out of stock

  • 3-In-1 Tool – Depth Gauge, Height Gauge, Thickness Gauge
  • Large LCD Display; On/Off, Zero Set Functions



iGaging part number: 35-0906

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

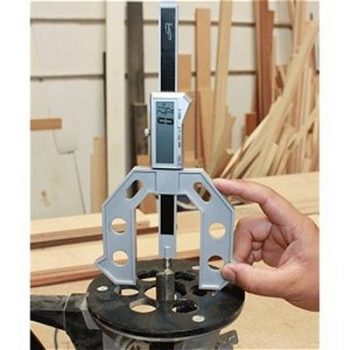

Set the height with greater accuracy! This 3-in-1 gauge combines the functions of three tools: a depth gauge, height gauge, and thickness gauge. Features super large LCD display and housed in a heavy-duty polycarbonate frame which allows it to stand freely. The frame allows the tool to be set at 70, 80 or 90 degrees as well as horizontally for accurate measuring. The measuring range is 0-150mm/0-6″, with a maximum depth of 3.10″ and a slot depth of 2.90″. Easily switches readings from inches to metric to fractions at a touch. Two hardened steel measuring anvils (flat and point) are included. Supplied with a 3V CR2032 battery.

Features:

  • Range: 150mm/6″
  • Resolution: 0.0005″, 0.01mm, 64th
  • Accurate to .001″ per inch
  • Measuring range: 0-150mm/0-6″, with a maximum depth of 3.10″ and a slot depth of 2.90″
  • Large LCD display
  • Quickly converts between inches, metric and fractions
  • Heavy-duty polycarbonate frame that is self-standing
  • Includes 2 hardened stainless steel points (flat and pointed)
  • Absolute zero function at any depth or height to allow determining the relative distance
  • Hold function so you never forget a measurement
  • Power saving that shuts off after 5 minutes
  • Battery: 3 volt CR2032 with an approximate life of 1 year
  • Comes with an extra battery
  • Warranty: 1 Year



iGaging part number: 35-0906

Additional information

MODEL

35-0906

SIZE

150mm (6”)
