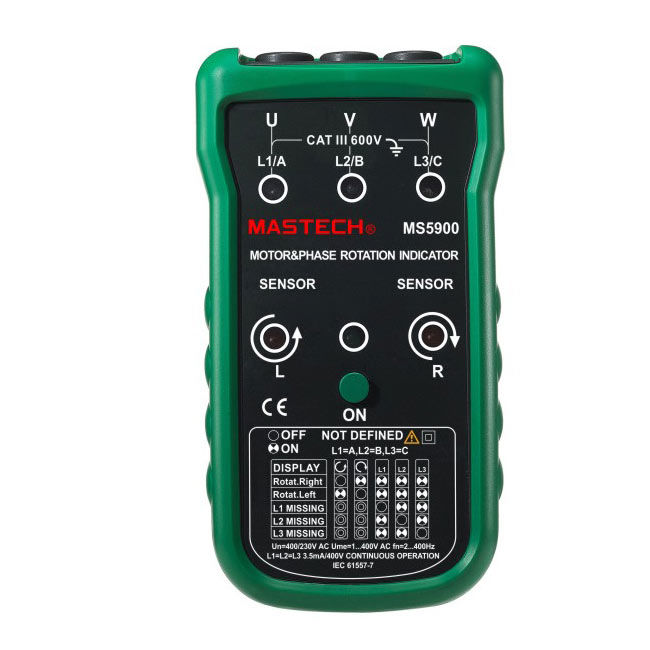

MANUAL Mastech MS5900 Motor & Phase Rotation Indicator

160.00 AED (Excl. VAT)

GET QUOTATION

MANUAL Mastech MS5900 Motor & Phase Rotation Indicator

160.00 AED (Excl. VAT)

GET QUOTATION

Motor and Phase Rotation Indicator is a handheld, battery-operated instrument designed to detect the rotary field of three-phase systems and determine motor-rotation direction. Features:
  • Operating TEMP: 0℃~-40℃
  • Operating Altitude: 2000m
  • Pollution Degree: 2
  • Type of protection: IP 40
  • Humidity: 15%~80%
Overview:
  • Environmental
    • Operating Temperature: 0°C to +40°C
    • Operating Altitude: 2000m
    • Pollution Degree:2
  • Mechanical Specifications

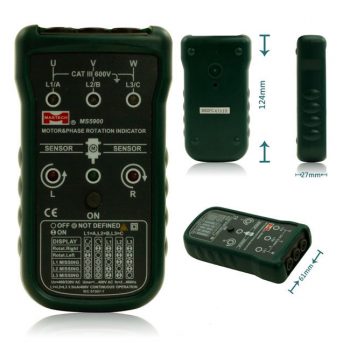

    • Size: 124*61*27 mm (4.9*24*1.1 in)
    • Weight: 150g (0.3lbs)
    • Humidity: 15% to 80%
  • Safety Specifications
    • Electrical Safety: Meets DIN VDE 0411, IEC 61010 DIN, VDE 04 13-7, EN 61557-7, IEC 61557-7
    • Maximum Operating Voltage (Ume): 400V AC for all ranges
    • Protection Level: CAT III, 600V
  • Electrical Specifications
    • Battery: 6F22/9V
    • Current Consumption: max 20 mA
    • Battery Life: minimum 1 year for average use
  • Determine Rotary Field Direction
    • Nominal Voltage Rotary Direction: 1 to 400V AC
    • Nominal Voltage Phase Indication: 120 to 400V AC
    • Frequency Range (fn): 2 to 400 Hz
    • Test currents (In per phase): less than 3.5mA
  • Non-Contact Rotary Field Indication
    • Frequency Range (fn): 2 to 100 Hz
  • Determine the Motor Connection
    • Nominal Test Voltage(Ume): 1 to 400V AC
    • Nominal Test Currents (In per phase): less than 3.5mA
    • Frequency Range (fn): 2 to 400 Hz2

Additional information

MODEL

MS-5900

SIZE

1V~ 400V AC
