iGaging : Digital Depth Gauge

380.00 AED (Excl. VAT)

iGaging Depth Gauge Digital Electronic Indicator 0-22″ Measuring Range, 0.0005″ Resolution, 2-Position Base (Inch/MM/Fractions)

Part number: 400-D69

Description

Measure depths in tight spots and up to 22″ deep with this super versatile tool.

The precision measuring instrument used to determine the depth of any shape that has a step, groove, or slot.



Features:

  • Range: 0 to 22″ (with included 6 extension rods 1″, 2″, 3″, 4″, 5″, 6″)
  • Resolution: 0.0005″
  • Super high precision electronic indicator:
  • 3 Reading functions: inch, metric, & fractional
  • Power saving auto off feature
  • Extra large LCD display
  • ABS: absolute & incremental reading
  • Resolution: .0005″ / .01mm / 1/128 inch
  • Accuracy: +/- 0.001″
  • Indicator Gauge conforms to AGD standard and Federal Accuracy specifications
  • Indicators can be mounted on center or side of base.
  • Base length: 4″

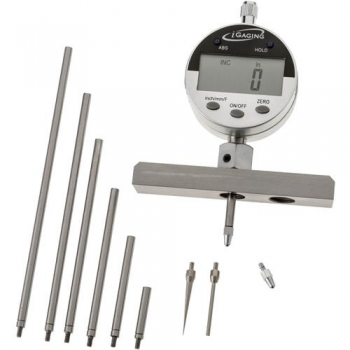

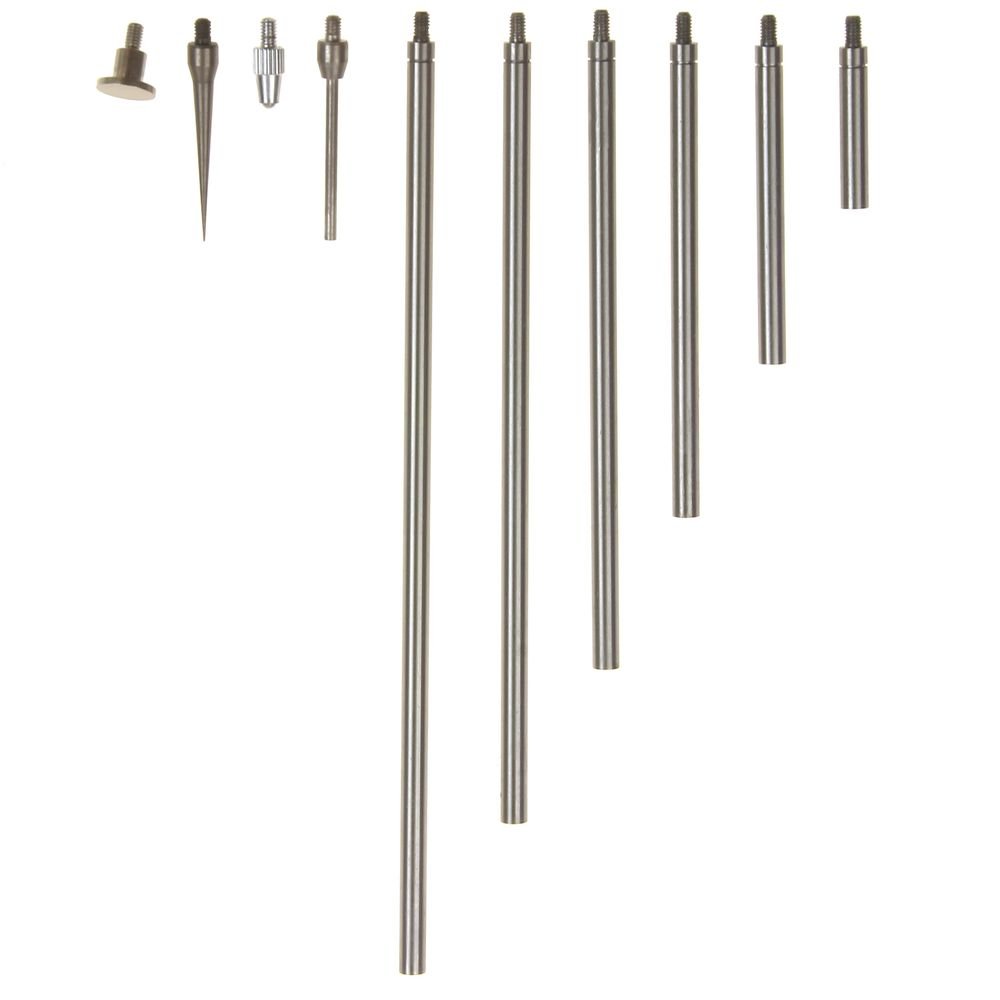

  • Includes 10 attachments (6 extension rods and 4 feeler points)

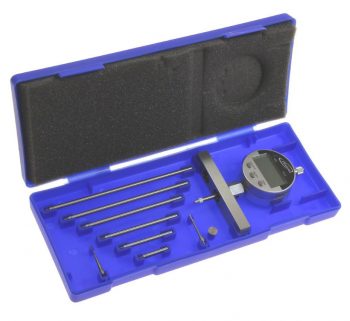

  • Protective case included



iGaging part number: 400-D69

Brand

iGaging

Additional information

MODEL

400-D69

SIZE

560mm (0-22")
