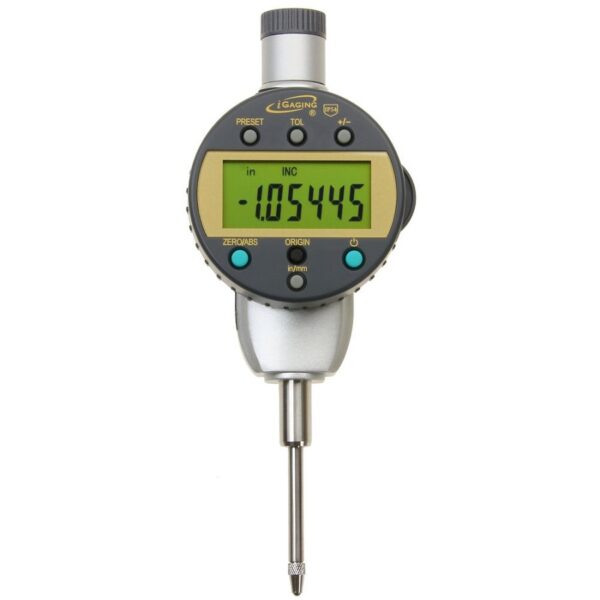

iGaging Absolute Digital Indicator 1"/25mm - Resolution: 0.0005"/0.01mm

425.00 AED (Excl. VAT)

Digital indicator

  • Range: 1″/25mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm
  • Repeatability: 0.0005″/0.01mm



Part no.: 35-705-25

GET QUOTATION

Brand:

iGaging Absolute Digital Indicator 1"/25mm - Resolution: 0.0005"/0.01mm

425.00 AED (Excl. VAT)

Digital indicator

  • Range: 1″/25mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm
  • Repeatability: 0.0005″/0.01mm



Part no.: 35-705-25

Tags:

GET QUOTATION

iGaging ABSOLUTE Technology Indicator The iGaging digital electronic indicator with ABSOLUTE encoder always remembers and traces absolute origin zero or preset data. It provides unlimited measuring speed without losing its origin. This indicator will indicate the absolute position when turned on. The indicator face can be rotated up to 330 degrees   Features:
  • SPC/USB Data Port
  • Indicator face can be rotated up to 330 degrees
  • ABSOLUTE encoder technology
  • IP54 Protection
  • Read and convert Inch/mm display
  • Change measuring direction – Positive up or positive down
  • Origin set
  • Preset value
  • Tolerance function
  • Zero/ABS – Switch between the incremental and absolute measuring
  • Super large LCD display
  • Shank diameter: 3/8″
  • Carbide tip
  • 4-48 threaded tip
  • 2 Years warranty
  Specifications:
  • Range: 1″/25mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm
  • Repeatability: 0.0005″/0.01mm
  • Battery: 1x CR2032 (2 included)
  iGaging part number: 35-705-25

Additional information

Model

35-705-25

Sizes

0-25mm (0-1")

Resolution

0.0005"/0.01mm

Accuracy

0.0005"/0.01mm
